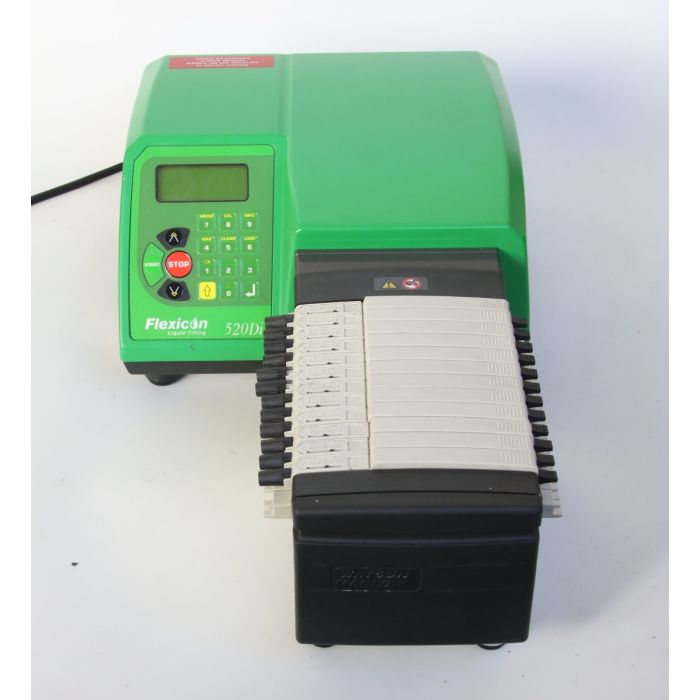

Watson Marlow 520DiN Peristalic Pump

Watson Marlow 520Din Peristalic Pump

Fitted with 520N Watertight Module and 205Ca12 12 Channel 8 roller acetal Cassette Pump Head

The 520Di offers easy calibration by weight or volume, with doses triggered by interval, keypad, remote signal or additional footswitch, handswitch or proximity switch.
• Output batch records for cGMP requirements are automatic
• RS232 and RS485 are available on IP31 and IP66 models respectively, plus control by logic I/O signals by contact closure, 5V TTL or 24V industrial standard logic
• IP66 protection allows high-pressure washdown
• On-screen menu and tactile keypad with high visibility display allow setting and storing up to 50 different dispensing programs,
each complete with all dose parameters and calibration

520Di pumps combine industrial power and durability with unrivalled precision, pumping up to 3.5 L/min and achieving pressures up to 2 bar. The pump can store up to 50 dispensing programs using the simple screen-keypad interface. The pump outputs batch records for cGMP requirements.

Accurate, fast dispensing for ultimate batch consistency. Dispenses 50 ml in 2 seconds with ±0.5 % accuracy.
Features and benefits
Fully automated aseptic fill/finish in biopharmaceutical and pharmaceutical drug manufacturing
Benchtop media or reagent preparation in laboratory suites – filling or inoculating bottles, vials, Petri dishes and media bags
Five-year warranty NEMA2 and NEMA4X (IP66 and IP31) enclosure for high-pressure washdown environments
Addition of colours, dyes, flavours, vitamins, and other ingredients in food production

Accuracy    ±0.5 %
Ingress rating    IP31, IP66, NEMA 2, NEMA 4X
Operating temperature range    5 to 40 °C
Operating temperature range    40 to 104 °F
Speed control ratio    2200:1
Humidity    (Condensing) 10-100 % RH, (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F)
Noise    <70dBb(A) at 1m
Standards    CE, cETLus
Power supply    110/230 V, 50/60 Hz, Single-phase
Weight    9.82 - 10.7 kg

At time of listing eight of these in identical condition are available

Pdf Manual
