Watson Marlow 205S Multi channel cassette pump

Wanted
SKU
N187

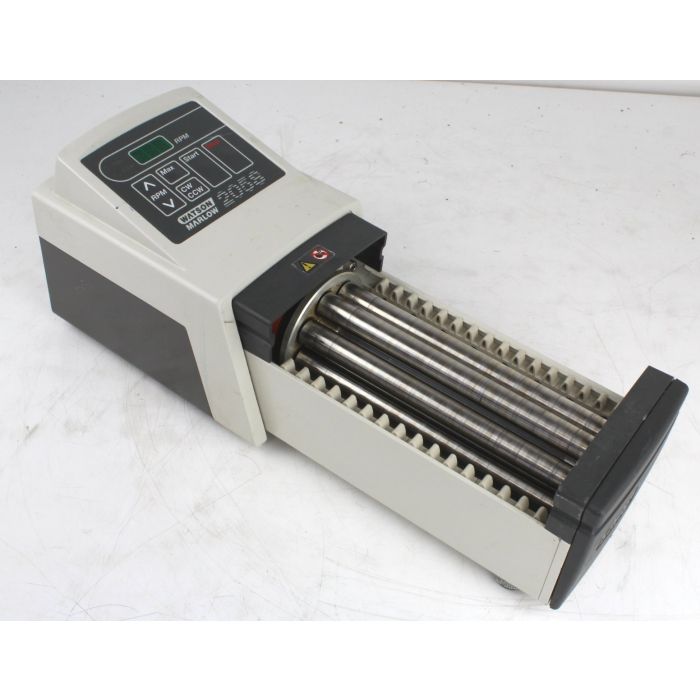

Watson Marlow 205S Multi channel cassette pump


The 200 series multi-channel scientific pumps provide high-precision pulsation-free pumping.

205S manual control variable speed pump.

Fitted with tachometer-controlled servo-quality DC motor for precise speed control. A keypad lock prevents tampering or accidental changes and there is a maximum high speed priming function.
Flow control for each individual channel is provided by multi-turn "click-stop" pressure adjustment on each cassette. The 205CA pumphead with its snap-fit cassettes and sprung track is factory-set for standard applications,but lockable occlusion adjustment allows settings to be optimised when necessary and, uniquely, remain undisturbed during tube changes. 0-5V DC tachometer output for speed monitoring, 5V auxiliary output for motor run indication.

Selectable dual voltage 100-120V or 220-240V 50/60Hz operation

Flow rates from 0.0006 to 22.0 ml/min
Manual speed control
LCD display of  pump speed
Auto restart and keypad lock functions
Manual control of stop/start, direction and priming via membrane keypad
Accepts manifold  tube elements, 0.13mm to 2.79mm bore
Motor running/stopped status via 5V Hi/Low signal output
Instant stops and reverse

Fitted with 205CA16 8-roller 16 channel acetal cassette P/H pump head

Serial# A083438

DIMS 43cm (D) x 15cm (W) x 15cm (H)

PDF Manual

No cassettes included
More Information
SKU N187
Availability Out of Stock
Condition Used
