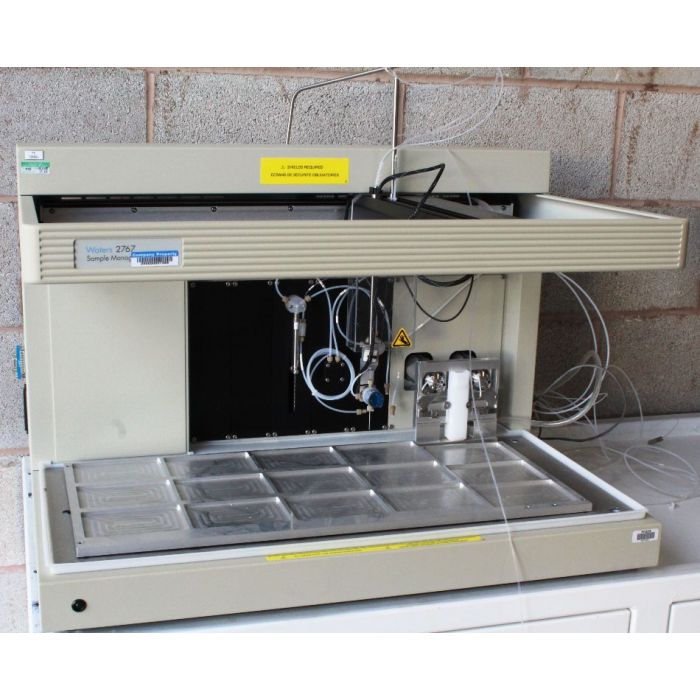

Waters 2767 Sample Manager
PDF Manuals
The 2767 Sample Manager is a high-capacity sample processing system that easily and automatically manages sample aspiration and injection, collection and fraction analysis on a single platform. Designed for use with HPLC or LC/MS systems, the 2767 is controlled easily with MassLynx™ Software.
The 2767 Sample Manager has separate sampling and fraction dispensing probes in a unique XYZSZF robotic arm ensuring that all positions on the worktable are accessible to either probe. It’s pre-configured with separate analytical and preparative injectors to allow alternating between analytical and preparative scale isolation and purification without hardware changes.
Features:
Optional sample formats for injection and collection; microtiter plates (up to 15), test tubes (up to 580), scintillation vials or conventional autosampler vials
Collection of sample fractions sequentially or with one-to-one mapping of sample and fraction
Self-venting probes that perform accurate sample injections from tightly covered containers
High velocity wash pump (>30 mL/minute flow) to rapidly and efficiently flush the sampling needle and tubing while maintaining high sample throughput
Optional fume hood for ventilation of hazardous vapors
Collection of sample fractions sequentially or with one-to-one mapping of sample and fraction
Self-venting probes that perform accurate sample injections from tightly covered containers
High velocity wash pump (>30 mL/minute flow) to rapidly and efficiently flush the sampling needle and tubing while maintaining high sample throughput
Optional fume hood for ventilation of hazardous vapors
Item Specification Operating Temperature 5° to 40 °C (59 to 104°F)
Operating environment Indoor use Relative humidity Maximum relative humidity 85% for temperature up to 31°C, decreasing linearity to 50% relative humidity at 40 °C
Altitude Up to 2000 meters (6562 feet)
Operating environment Indoor use Relative humidity Maximum relative humidity 85% for temperature up to 31°C, decreasing linearity to 50% relative humidity at 40 °C
Altitude Up to 2000 meters (6562 feet)
Dimensions :
H D W 30 in. (76.2 cm); 23.5 in. (62.2 cm) 34 in. ( 86.4 cm)
Weight 120 pounds (59.4 kg)
Worktable (Width x depth x height) 15.1 in. x 5.9 in. x 6.9 in. (38.4cm x 15.0cm x 17.5cm)
Wetted surface materials 316L stainless steel, Tefzel (ETFE), Teflon (FEP and PTFE), polyetheretherketone (PEEK)
Serial# C05XY6710M
| SKU | K232 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
