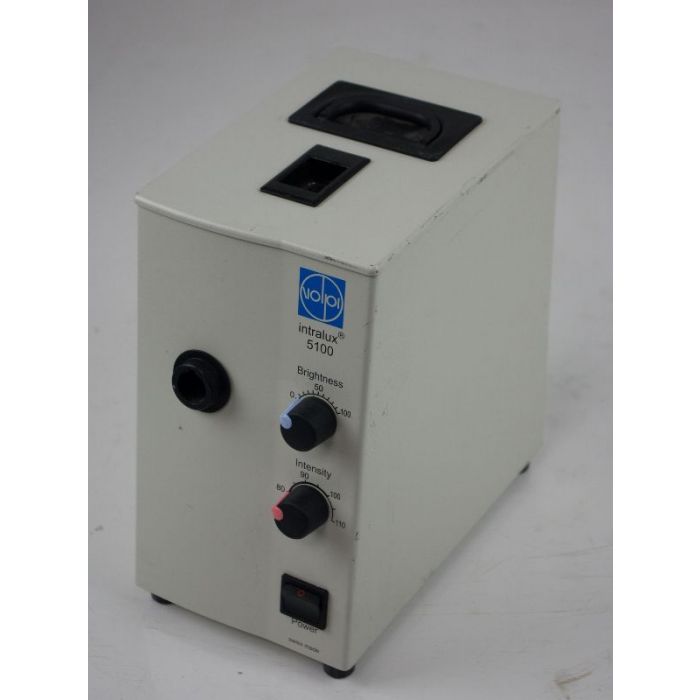

Volpi Intralux® 5100 Halogen Light source

Volpi Intralux® 5100 Halogen Light source

The Intralux® 5100 is a well-balanced 150 W halogen cold light source. The 5100 is very small in
size, delivers a very homogeneous light and is easy to operate.

The intralux® 5100 cold light source has been specially developed for the illumination of
Stereo Microscopes and fulfils the most demanding requirements concerning safety and
performance

• Compatible with all Volpi fiber optic components
• Ergonomic design with small footprint
• Quick bulb replacement - reduces downtime
• Solid metal housing - designed for industrial use
• Certified for electronic and mechanical safety

Technical Specifications

Illumination intensity at 110% voltage at light guide input   12,3 M Lux
Color temperature   3433K
Max. illuminated light guide Ø   13mm
Mechanical light guide connector Ø   15mm
Electrical light adjustment   8-step switch 75%-100%
Mechanical light adjustment (Crescent shaped diapragm)   0-100 (16 steps; constant color temperature)
Halogen-Reflector lamp   EKE 21V / 150W
Average lamp life (230V )   1.700h (80% Intensity)
Line voltage / Power consumption (EURO Model)   230V / 110W
Max. enclosure temperature   Ambient temperature + 20°C
Degree of protection  Protection class 1
Weight   4.6 kg
Enclosure   metal, powder-coated RAL 9002
Approvals    CE / Product Safety IEC/EN 61010-1: 2001
             EMC: Emission IEC/CISPR 11, Class B
             Immunity: IEC 61000-4-2 to 6 and 11


PDF Manual

Serial# 073611
