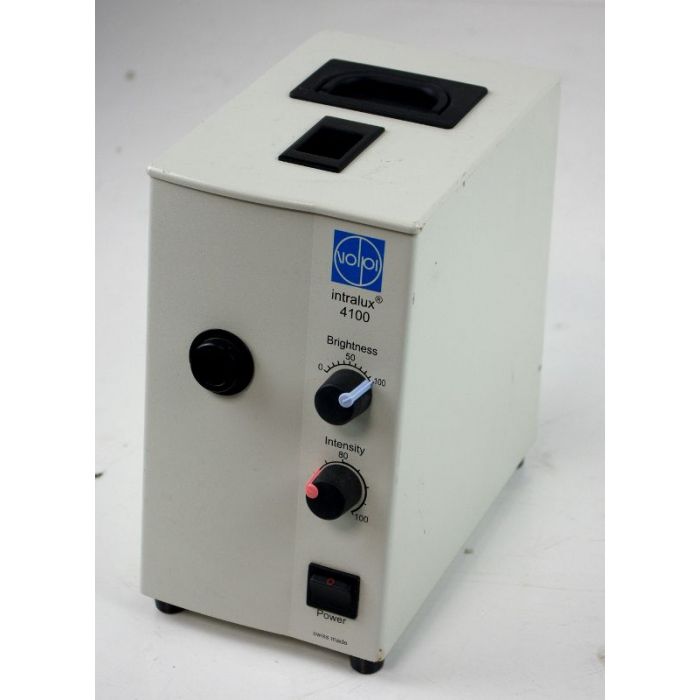

Volpi Intralux® 4100 Halogen Light source

Please call...
SKU
H112

Volpi Intralux® 4100 Halogen Light source

The Intralux® 4100 is a functional 100 W halogen cold light source for fiber-optic light guides with high light intensity and long lamp life.


  • Compatible with all Volpi fiber optic components
  •
  • Ergonomic design with small footprint
  •
  • Quick bulb replacement - reduces downtime
  •
  • Solid metal housing - designed for industrial use
  •
  • Certified for electronic and mechanical safety



Technical Specifications

Illumination intensity at 100% voltage at light guide input  6,8 M Lux
Color temperature   3159K
Max. illuminated light guide Ø   10mm
Mechanical light guide connector Ø   15mm
Electrical light adjustment   60%-100%
Mechanical light adjustment (Crescent shaped diapragm)   0-100 (constant color temperature)
Halogen-Reflector lamp   12V/100W
Average lamp life (230V )   12.000h (80% Intensity)
Line voltage / Power consumption  230V / 110W
Max. enclosure temperature   Ambient temperature + 20°C
Degree of protection   Protection class 1
Weight   3 kg
Enclosure   metal, powder-coated RAL 9002
Approvals   CE / Product Safety IEC/EN 61010-1: 2001
            EMC: Emission IEC/CISPR 11, Class B
            Immunity: IEC 61000-4-2 to 6 and 11

PDF Manual

More Information
SKU H112
Condition Used
