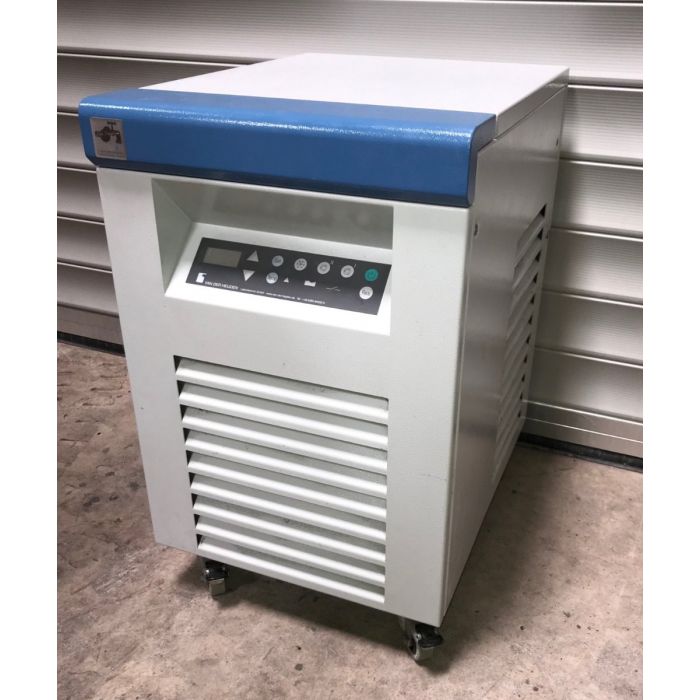

Van Der Heijen Kuhlmobil water chiller MINORE II-RB301

Van Der Heijen Kuhlmobil water chiller MINORE II-RB301

The MINORE is a small circulatory cooler. A cooling unit cools the circulating water and/or antifreeze mixture in a small container, from where it is supplied to the cooling unit by a circulation pump. The tank is easily accessible and can be filled from under the hinged cover on the top of the unit

16 Deg C - 20 Deg C
500W

Features and advantages

100% water savings in tap water
No sewage costs for waste water
Cooling water temperature, pressure and flow can be regulated
Constant water quality, no limescale, no algae
Lockable Castors
Temperature display in LED blue
Foil keyboard
Can be used for varying application
Power regulation by micro- processor controlled heating, this means high temperature constance of water prerun temperature (0.1 K)

Cooling output at water discharge temperature of 20° C 500 watts
Ambient temperature approved up to +32°
Pumping capacity 5 l/min. at 0.3 bar
Feed pressure 0.4 bar
Tank contents 5 liter
Dimensions (W x D x H) 360 x 470 x 590 mm
Type of current 230 V/50 Hz/1 PH/N/P
Power consumption 340 watts max.
Weight 38Kg

Serial# SZ 1408 08
