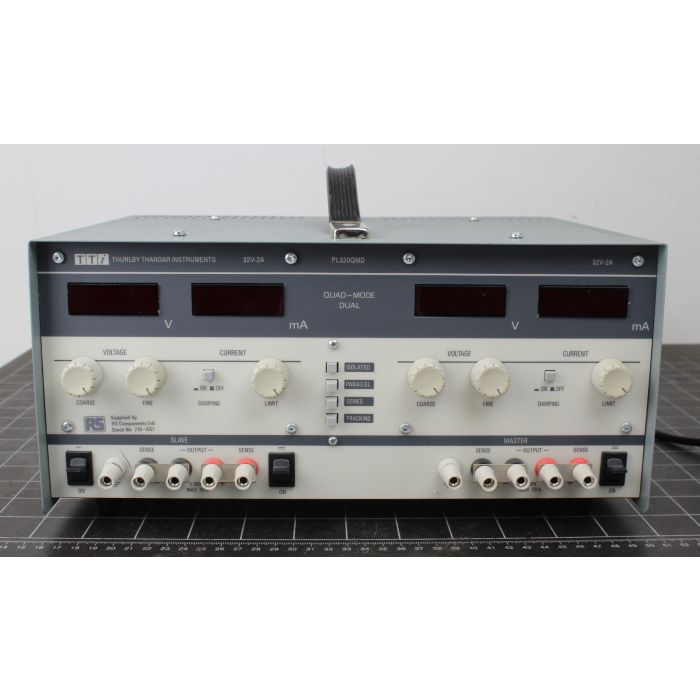

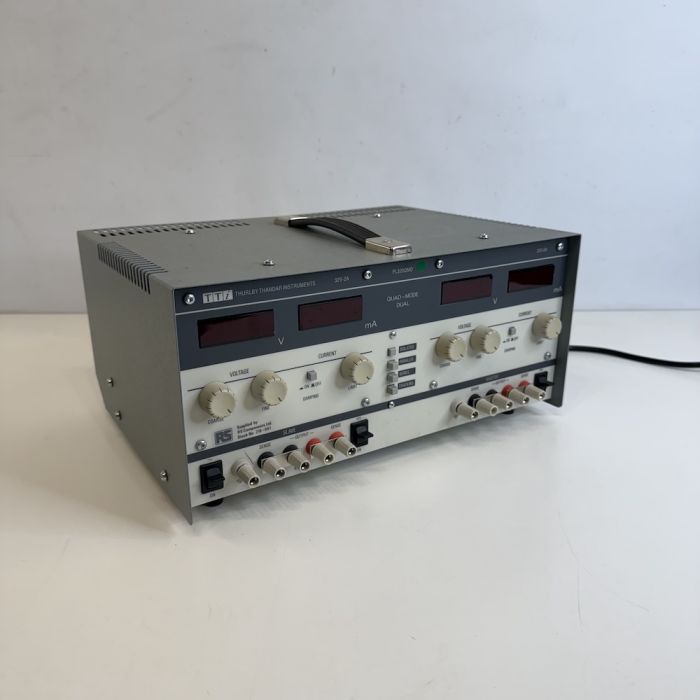

TTi Thurlby Thandar Instruments PL320QMD Bench Power Supply

TTi Thurlby Thandar Instruments PL320QMD Bench Power Supply

Dual output quad mode PL320QMD

The Thurlby Thandar PL series of laboratory bench power supplies has established itself in many countries as an “industry standard” range.
High resolution controls are combined with precision metering and remote sense terminals. Dual and triple output models incorporate quad-mode switching which provides push-button selection of isolated, true parallel, series or series-tracking modes

Variable series regulated DC power supplies designed for operation in both constant current and constant voltage mode.

Line and load regulation <0.01% of maximum output

Remote voltage & current sensing capability
Outputs continually displayed
Full short circuit, reverse voltage and overload protection
Current limit may be set prior to connecting load
Logarithmic current limit control

Variation of the dual quad mode PSU with additional independent high current output for powering 5V logic circuits

● Simultaneous digital metering of voltage and current.
● True constant voltage or constant current operation.
● Twin 3.75 digit meters with large LED displays.
● 0.1% accuracy; 0.01 Volts and 0.001 Amps resolution.
● Excellent stability, resolution and setting accuracy.
● DC output switches, automatic mode indication.
● Precise control and monitoring of current limit settings.
● Remote sense facility for high-current precision.
● Current meter damping switch for fluctuating currents.
● Parallel, series & tracking modes on QMD & QMT models.
● High current “logic supply” output on QMT models

Output Voltage 0 → 32V
Output Current 0 → 2A
Number of Outputs 2
Type Digital
Power Rating 240W
Supply Voltage 115 V ac, 230 V ac
Number of Displays 4
Output Connector Binding Post Terminal
Calibrated RSCAL
Minimum Temperature +5°C
Maximum Temperature +40°C

Serial: 227397
             075846
