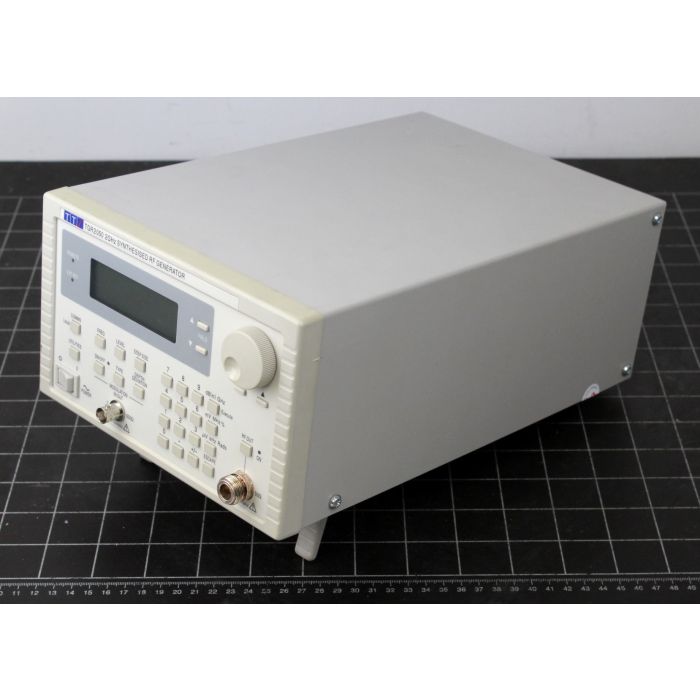

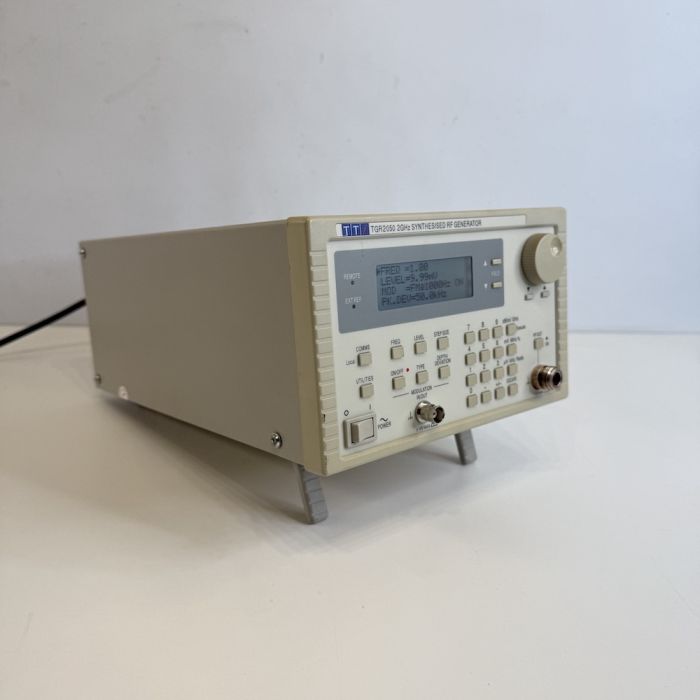

TTi TGR2050 2GHz Synthesised RF Generator

TTi TGR2050 2GHz Synthesised RF Generator

The TGR2050 offers a wide frequency range with a setability of 10Hz. It has 1ppm internal stability and can be locked to an external standard.

Modulation facilities of FM, Phase and AM are included

50kHz to 2000MHz frequency range
10Hz frequency setability
Locking to external frequency standard
Accuracy better than 1ppm over 15oC to 30oC
Ageing better than 1 ppm over one year
Low phase noise and low leakage
-127dBm to +7dBm amplitude, 0.1dB steps
Amplitude entry in dBm or µV / mV
FM, Phase and AM modulation, internal or external
Keyboard and rotary encoder control
Non-volatile storage for 9 generator set-ups
Full remote control through RS232 and GPIB
Exceptional price/performance ratio

Serial: 350649

Pdf Manual
