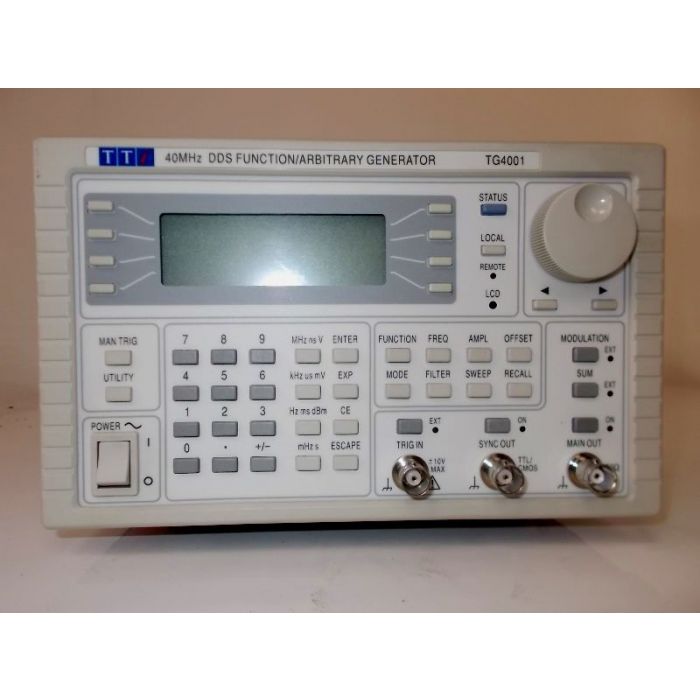

TTi TG4001 40MHz DDS Function / Arbitrary Generator

Sold
Wanted
SKU
H044

TTi TG4001 40MHz DDS Function / Arbitrary Generator

With User Manual

  • 40MHz DDS function generator with arbitrary waveform capability
  • Sinewaves to 40MHz, squarewaves to 50MHz
  • Up to 10 digits of frequency resolution
  • Very high waveform purity, excellent frequency flatness
  • Arbitrary waveforms of up to 64K words at up to 100MS/s
  • Non-volatile storage for 4 arbitrary waveforms and 9 set-ups
  • Pulse train generator for up to 10 pulses of variable width, delay & level
  • Extensive range of modulation modes
  • Integral RS232 and USB interfaces for remote control and waveform downloading



STANDARD WAVEFORMS
Sine, Cosine, Haversine, Havercosine
Range:                              0·1mHz to 40 MHz
Resolution:                        0·1mHz or 10 digits
Square
Range:                               1mHz to 50MHz.
Resolution:                        1mHz or 8 digits
Triangle, Ramps and Sin(x)/x
Range:                              0.1mHz to 500kHz.
Resolution:                        0.1mHz or 10 digits
Pulse and Pulse Train
Repetition Range:            40ns to 100s
Pulse Resolution:             8 digits
Pulse Delay:                     -99·99s to + 99·99s
Pulse Width:                     10ns to 99·99s
Pulse trains of up to 10 pulses may be specified, each pulse having independently defined width, delay and level.


ARBITRARY WAVEFORMS
Up to 4 user defined waveforms may be stored. Arbitrary waveforms can be defined by front panel editing controls or by downloading of waveform data via RS232 or USB.
Waveform Memory:        65536 points max. (8 minimum)
Vertical Resolution:        12 bits (4096 points max.)
Sample Clock Range:    0.1Hz to 100MHz (7 digit resolution)
Noise Function:              Digital noise generated by 35 bit feedback register at 100MHz
Output Filter:                  Selectable between 40MHz Elliptic, 20MHz Bessel or none
OUTPUTS
Main Output
Amplitude:                    5mV to 20V pk-pk emf from 50 Ohms   ±0.2dB to 1MHz; ±0.4dB to 40 MHz
DC Offset:                    ±10V
Rise and Fall Times:    8ns

Sync Out
Multifunction output user definable to be any of the following: Waveform Sync, Position Markers, Burst Done, Sweep Sync, Trigger signal or Phase Lock out.

INPUTS
Trig In, Modulation In, Sum In, Hold In, Reference In/Out, Arb Clock In.
MODULATION MODES

Sweep

Linear or logarithmic sweep is provided for both standard and arbitrary waveforms. Frequency span can be from 1mHz to 40 MHz in one range, phase continuous, with independent setting of start and stop frequency. The sweep time is variable between 1ms and 999 seconds and there is a variable sweep marker. The sweep may be free run or triggered manually from the card or externally from the trigger input or remote interface AM or SCM modulation using the external signal input

Burst, Gated and Tone Switching
Standard and arbitrary waveforms can be used in Triggered Burst, Gated or Tone Switching modes. The trigger source can be internal from keyboard trigger generator, or external from TRIG IN or remote interface. For tone switching, a list of up to 16 frequencies from 1mHz to 40MHz can be generated with instantaneous switching between them.

Trigger Generator
Internal source 0.005 Hz to 100kHz squarewave adjustable in 10µs steps. 3 digit resolution. Available for external use from SYNC OUT socket

INTERFACES
Full remote control facilities and waveform download are available through the RS232 or USB interfaces.

Stored Settings:    9 instrument set-ups plus 4 arbitrary waveforms

GENERAL
Power:                                                                        230V, 115V or 100V ±14%. 50/60/400Hz, Installation Category II.
Size and Weight:                                                        212 x 130 x 335 mm 4.2 kg


Digital Amplitude and Offset                                      Yes
Digital Frequency                                                       Yes
Dimensions                                                                 335 x 212 x 130mm
Height                                                                         130mm
Input Impedance                                                         10 kO
Interface Type                                                             GPIB, RS232, USB
Internal and External Amplitude Modulation               Yes
Internal Linear and Log Sweep                                   Yes
Length            335mm
Maximum Frequency Range Sinewave                      40MHz
Maximum Frequency Range Square Pulse and Arbitrary Waveform 50MHz
Maximum Frequency Range Triangle/Saw                 500kHz
Maximum Operating Temperature                               +40°C
Minimum Frequency Range Sinewave                        0.1MHz
Minimum Frequency Range Square Pulse and Arbitrary Waveform MHz
Minimum Frequency Range Triangle/Saw                   0.1MHz
Minimum Operating Temperature                                 +5°C
Model Number p                            TG4001
Output Amplitude                           20V Pk-Pk
Output Impedance                         50 O, 600 O
Plug Type                                       Type G - British 3-pin
Time Base Accuracy                      ±10ppm
Variable Sweep                              Yes
Weight                                            4.1kg
Width                                              212mm

More Information
SKU H044
Availability Out of Stock
Condition Used
