Thermo, Spectra System, HPLC System
Including PC with Chromquest 4.1 Chromatography software.

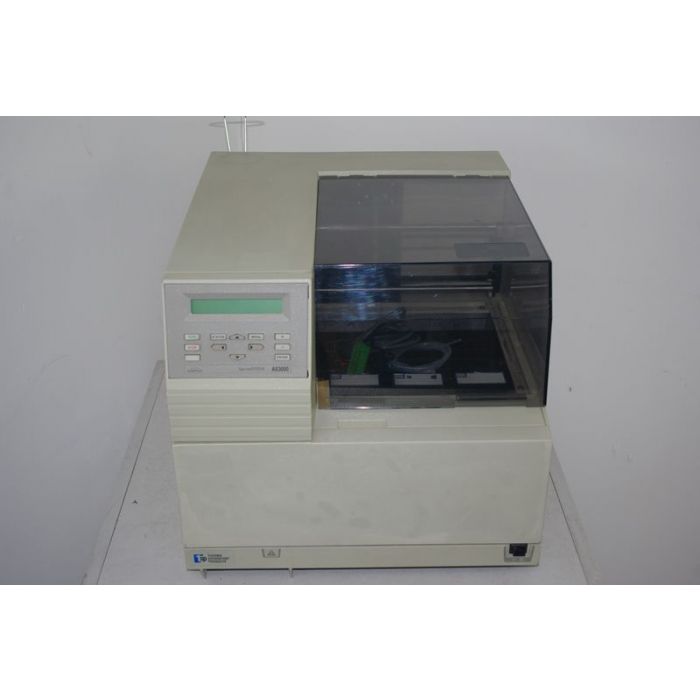

•     Spectra System AS3000 Autosample
•
•     Spectra 2000 HPLC Pump
•
•     UV/Vis Absorbance Detector
•
•     Two 4 Channel Degasser Units
•
•     Agilent 1100 G1362A RID
•
•     SN4000 Controller - With user guide


AS 3000 Autosampler Specifications:

• Vial capacity:
  • 120 vials in three removable trays
  • 105 vials with tray temperature control
• Variable-Volume:
  • Injection Precision: <0.5 % RSD @ 10 pL or greater
  • Injection Volume: 0.1 - 100 pL injection standard (250 uL syringe) up to 1000 uL injections with larger loops and syringes
• Fixed-Loop:
  • Injection Precision: <0.5% RSD @ 10 uL or greater
  • Injection Volume: 20 uL standard (250 uL syringe) 1000 uL injections with larger loops and syringes
• Sample Carryover:
  • <0.0 I% at 300 gL flush volume
  • 5 mL flush volumes can be set
• Minimum Sample Volume: 1 uL can be injected from 5 uL with an end-port needle
• Needle Height: Programmable in 0.1 mm increments
• Method Files: Protected in non-volatile memory
• Communications
  • Remote Inputs: Pump Ready, Inject Hold
  • Outputs Pump Stop, Autosampler Ready, Inject, Gradient Start, Four timed-event outputs
  • SpectraNETIRS-232 port
• Ambient Environment: 10° - 40°C, 5 - 95% relative humidity
• Dimensions: 37cm x 41cm x 51cm (HxWxD)

Agilent 1100 G1362A RID
Advanced temperature controlled detector optics ready to use within two hours of installation
Automatic zero and automatic purge combined with a recycle valve for automatic solvent recycling allow uninterrupted operation
Automatic light intensity control circuit to ensure the optimum performance of the optics
Integrated diagnostics for efficient troubleshooting
Built-in refractive index calibration
Front access to valves and capillaries for easy maintenance

Spectra Systems P2000 HPLC Pump:

The P2000 is designed for reliable, binary gradient operation. Advanced features, including four named files with up to 40 program lines per file, a queue for file linking, and logical user interface provide flexibility for the development or quality control laboratory.

• Real-time pressure feedback control system provides automatic solvent compressibility compensation for accurate, precise flows
• Highest retention time reproducibility from precise flow control, solvent proportioning and efficient mixing
