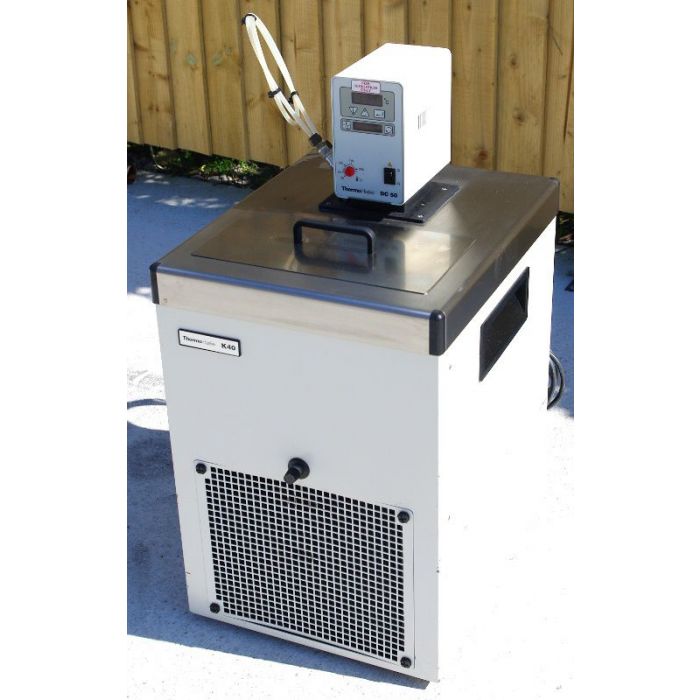

Thermo Haake Compact Refrigerated Circulator DC50-K40

Thermo Haake® Compact Refrigerated Circulator DC50-K40

The HAAKE DC50-K40 refrigerated bath gives you simple, reliable options for obtaining consistent results. This
compact unit allows you to place samples in the bath or circulate to external closed loop applications.· Wide
temperature ranges to meet application needs (down to -40°C)· 2 digital displays for simple operation· Fast
cooling with 700W to minimize time to setpoint

This refrigerated circulator is equipped with a bath opening for direct temperature controlling samples. The
built-in CFC-free cooling circuit enables efficient heat removal. This unit is often used to replace expensive
tap water cooling; robust design using high grade stainless steel and temperature resistant polymer with sealed
bath cover; removable fan grid allows easy cleaning; bath is equipped with handles and drain opening; 2-speed
power-pump to reduce turbulences in open baths, wear-free; integrated overload protection; user-resettable,
adjustable overtemperature cut-out and low liquid level protection; easy to operate by only 4 navigation keys;
electronic PID control using a highly sensitive Pt 1000 sensor for excellent temperature accuracy; RS 232C
interface as standard; user-defined fixed temperatures with separate RTA for each temperature; display resolution
selectable between 0.1 and 0.01 deg C; limitation of the usable temperature range by high and low temperature
setting; RTA = Real-Temperature-Adjustment. User-adjustable correction factor to meet ISO 9004; Alarm indication
by FIS = Fault-Identification-System. The reason for any malfunction is clearly displayed; built-in ETC (External
Temperature Control) with a connection for an external Pt 100 sensor; bath volume 12 l; temperature range -40 to

150 deg C

Feature                  CE compliant
Mfr. no.                   DC50-K40
Limit                      −40-150 °C temperature
                                0.01-0.04 °C temp. stability
Cooling capacity  700 W
                tested at 20 °C
Heater capacity    2.0 kw
Bath opening        L × W × H       290 mm × 150 mm × 150 mm
Bath volume         12 L
Overall                    D × W × H       460 mm × 380 mm × 740 mm

PDF Manual

Serial# K40 - 1200300217005
           DC50 - 1200203427014
