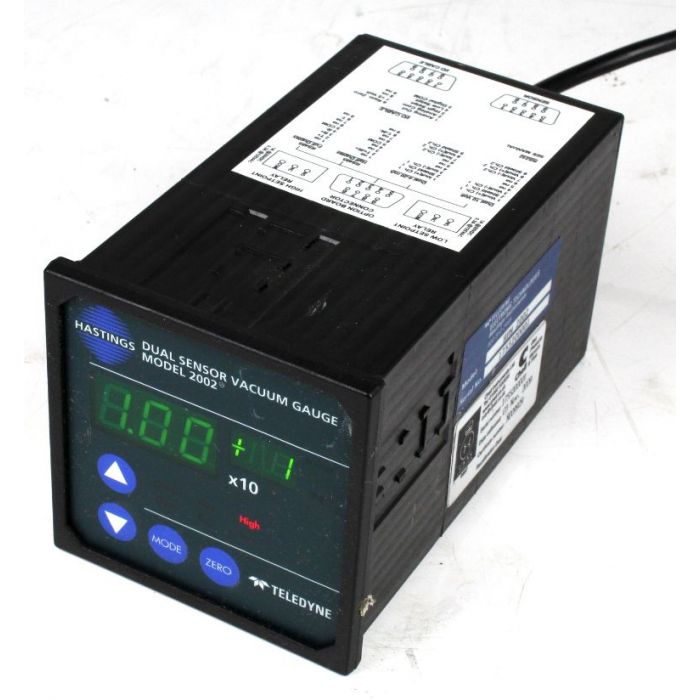

Teledyne Hastings HPM2002 Vacuum Gauge



Teledyne Hastings, manufacturer of the original DV-4 and DV-6 thermocouple gauge tubes, produces vacuum measurement equipment with exceptional stability, accuracy and reliability under the most demanding of conditions.



Features Applications
 • Compact Rugged Design
 • Proven Reliability
 • Wide Dynamic Range 0.1 mTorr - 1000 Torr
 • Withstand 150 psig Burst Pressure
 • Fast Dynamic Response
 • Mount in any Orientation



Applications
 • Plasma Coating
 • Thin Film Coating
 • Load Lock
 • Air Conditioning



Accuracy +/-1.5% of Reading 50-1000 Torr
         +/-20% of Reading 0.001 - 50 Torr



Display 3 Digit LED floating point mantissa
        Plus 2 digit exponent



Units User Selectable via Front Panel  Torr
                                       mbar
                                       Pa



Operating Temperature Range 0°- 50° C



Response Time  200 milliseconds



PDF Manual



Serial# 1755200001



Sensors not included



http://www.teledynehastings.com/pdfs/PB-143_HPM-2002.pdf
