Techniquip Model 21 DC halogen fiber optic illuminator

In stock

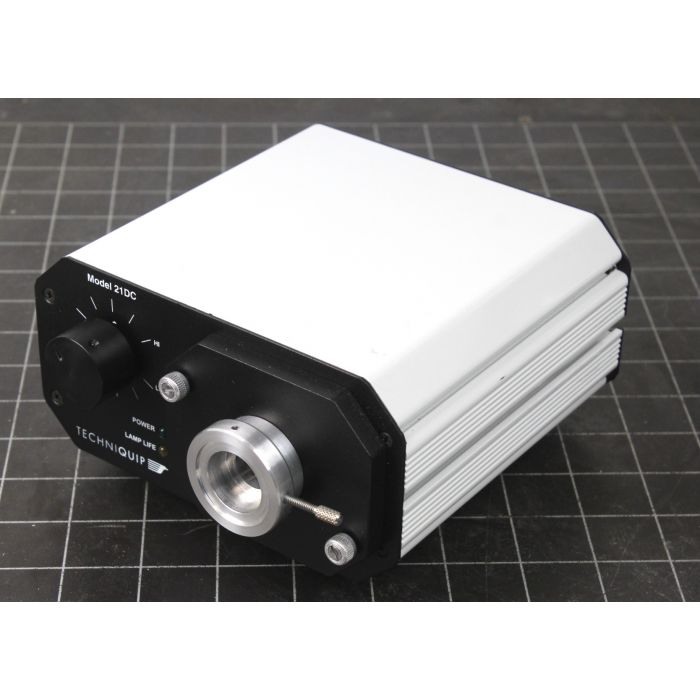

Techniquip Model 21 DC halogen fiber optic illuminator

Techniquip’s Model 21 DC is a UL and CE listed high-performance halogen fiber optic illuminator. The 21DC delivers stabilized light output that is critical for many high speed imaging applications. Each unit comes equipped with a rear panel connector that enables remote control necessary in many OEM and machine vision applications. The Model 21 DC utilizes a cold mirror reflector to deliver cool, shadow-free illumination. At just under 200 cubic inches in volume, the Model 21DC is one of the world’s most compact 150W halogen illuminators, making it perfect for space-constrained areas. The Model 21DC is widely used in microscopy, machine vision, semiconductor fabrication, and other "mission critical” applications.

Techniquip’s Model 21 DC is a fully regulated illuminator. This feature transforms the alternating and fluctuating input voltage into highly stable light output to provide equal exposure even when imaging times are in the KHz range. Without stabilization the image quality obtained from many high speed digital, video, or still cameras would not be consistent over time (between frames)

Input 90-254 V AC

Serial#'s A23233 & 34

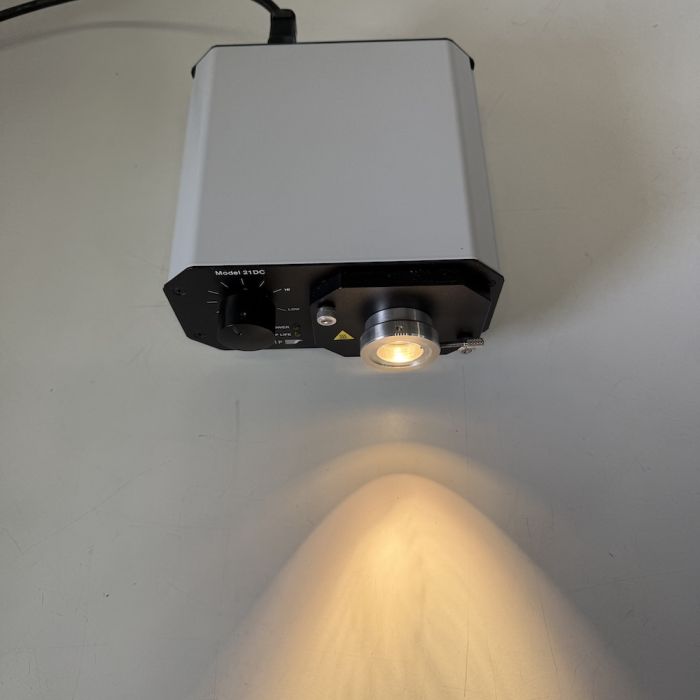

Can be supplied with adapter ring as per image if req

More Information
SKU R009
Availability In Stock
Condition Used
