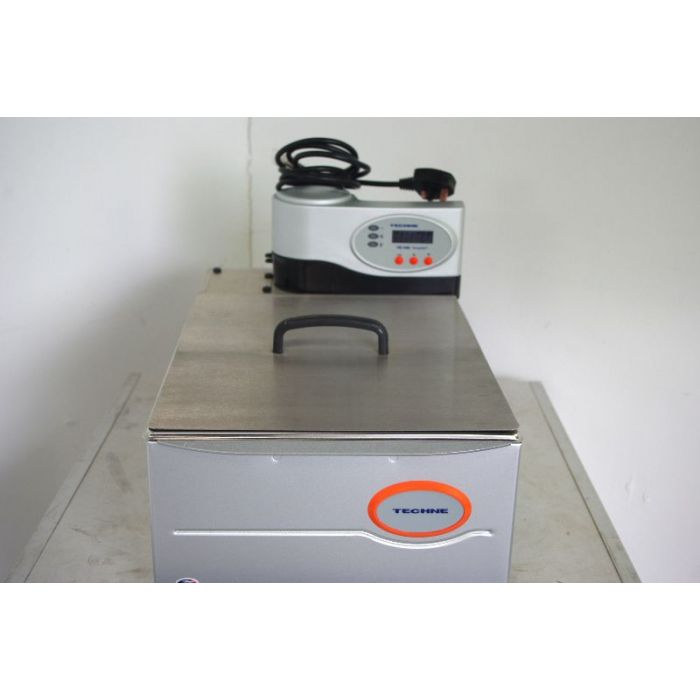

Techne Tempette TE10D Heated Circulating Water Bath 18L

Techne TE-10D Heater Circulator
with 18 L Water Bath

and User Manual

Condition:- As NEW


TE-10D
Techne® invented the "Clip On" thermoregulator in 1948, and now offer four units. Thermoregulators are designed to be used with the Techne® unheated water baths or any other suitable laboratory vessels. They will heat, circulate and safely control the temperature of the liquid in the bath within precise limits.

• Temperature range of -40°C* to 120°C
• Excellent temperature stability: ±0.01°C at 40°C
• 4 digit setting with a bright LED digital temperature display
• Suitable for most routine laboratory applications
• User adjustable over-temperature cut-out
• Low liquid level cut-out as standard

*Sub-ambient cooling
This thermoregulator can be used for sub-ambient cooling, right down to -40°C, although a low-temperature liquid is required below 0°C. Sub-ambient cooling can be achieved using the cooling coil accessory (part number FCC01) connected to an external chilling system, for example a cold tap. Alternatively a Techne dip-cooler or flow cooler could be used as a method of chilling.

External circulation
This thermoregulator can be used in several ways. (1) Stand-alone waterbath temperature controller with precision accuracy and stirring action. (2) Pump for recirculating chilled liquid produced in an external chiller allowing sub-ambient water bath temperature. (3) Pump for providing temperature control to an external system or device. (4) A combination of using externally chilled liquid and providing temperature control to an external system.
