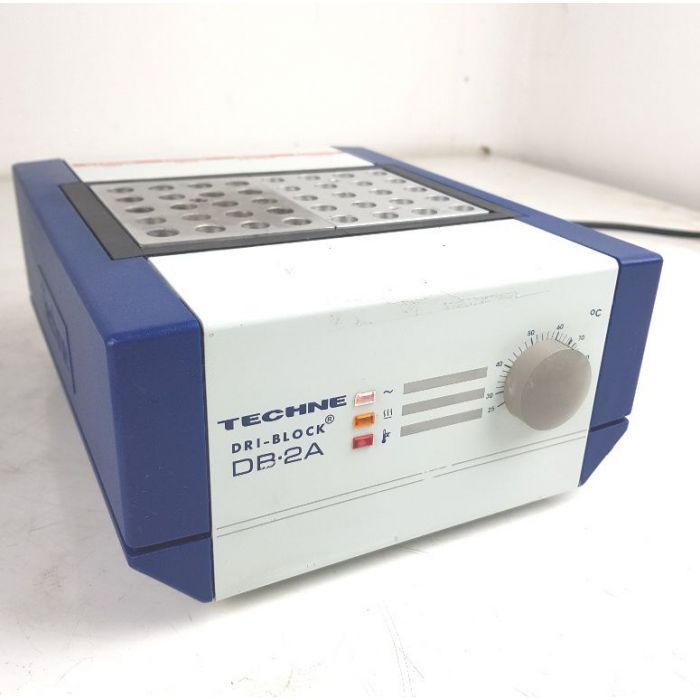

Techne DB-2A Dri-Block Heater



Model FDB02AD

Blocks fitted are11mm dia holes



Techne® Dri-Block® heaters have been providing a safe, dry, constant temperature source in the laboratory for 50 years, offering market-leading choice, flexibility and specification. Dri-Block® heaters are a source of precision temperature control for general, routing applications and sensitive analytical procedures particularly suited to microbiology and clinical laboratories. They are designed for precise heating of test-tubes, microcentrifuge tubes, cuvettes and microtitre plates. Techne® Dri-Block® heaters cover the temperature range from ambient +5°C to 100°C using machined aluminium alloy Dri-Block® inserts as the heat transfer medium. Independent indicator lights indicate mains power, heater action and over-temperature cut-out. An On/Off switch is mounted on the rear panel, together with the mains connector and a fuse holder.



Techne's Dri-block® heaters provide a safe, dry, constant temperature source in the laboratory. The block heater units are particularly suitable for microbiology and clinical laboratories for incubation, boiling, inactivation, wet washing, sample concentration, enzyme analysis and many other clinical and industrial purposes.



• Small, light and compact footprint, economical price
• Very accurate temperature control
• Analogue control. Temperature setting is by a calibrated dial
• Temperature range from ambient to 100°C
• Fast heat-up rate: 30°C to 100°C in just 12 minutes
• Temperature stability at 40°C: ± 0.05°C
• Wide range of interchangeable aluminium blocks (We are including 2 x 20 position blocks for 111mm (D) tubes
• Blocks available as accessories for all applications - tubes, vials and microplates
• Can hold up to 2 aluminium insert blocks or one 96-well plate block

Temperature range Ambient to 100°C
Maximum no. of blocks 2
Temperature stability @40°C ±0.05°C
Temperature stability @ 100°C ±0.1°C
Temperature setting Rotary graduated dial
Temperature scale graduation 2°C
Maximum variation between identical blocks @ 40°C 0.2°C
Set point accuracy ±2°C
Heat up time: 30 to 37°C 8
Heat up time: 30 to 56°C 9
Heat up time: 30 to Maximum 12
Heater power 400W
Power supply 230V 50-60 Hz

Dimensions W x D x H (mm) 202 x 260 x 105



Serial#  77731-13 and 77733-13
