Stuart STR4 Drive Unit Rotator

Stuart STR4 Drive Unit Rotator

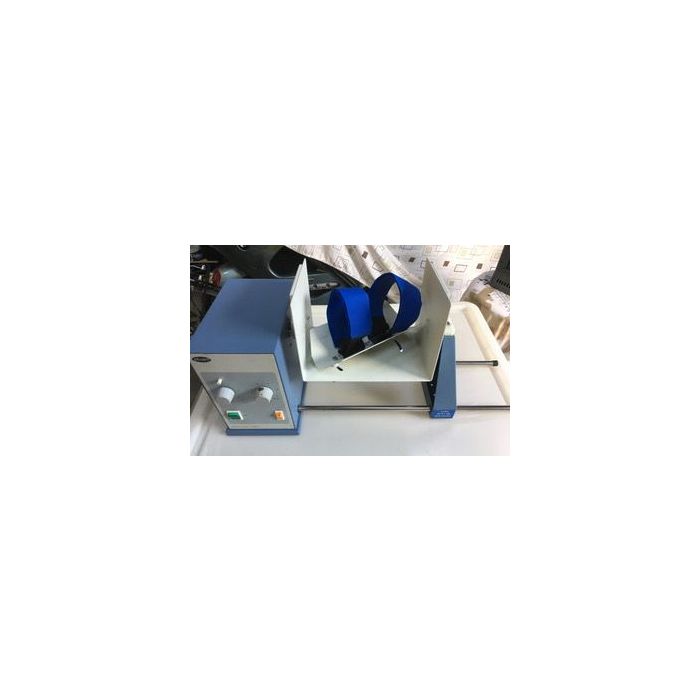

Stuart Rotator Drive STR4 with original fig 8 STR4/3 holder and 4 bottle holder

This rotator drive unit is used in conjunction with a wide range of drums designed to accommodate different sizes and types of vessels and provide different mixing actions as detailed below.

Used but functions as required. Comes with the STR4/3 which rotates a bottle with a figure of 8 motion. Comes with an home made STR4/4 holder and 4 bottle holder.

•   Highly versatile - accepts a choice of 5 drums
•   Built in timer
•   Variable speed control 6 to 60rpm

The STR4 rotator drive unit is used in conjunction with a wide range of drums designed to take different sizes and types of vessels. The five drums are designed to give different mixing actions and are listed on pages 38 to 40. Speed of rotation is variable from 6 to 60rpm for a range of mixing applications.

For added convenience a built in analogue timer can be set from 10 to 60 minutes. Alternatively the unit can be set for continuous operation.

Technical Specifications

Rotation speed - 6 to 60rpm
Dimensions (w x d x h) - 650 x 250 x 250mm
Net weight - 6.4kg
Electrical Supply - 230V, 50Hz, 50W

PDF Manual
