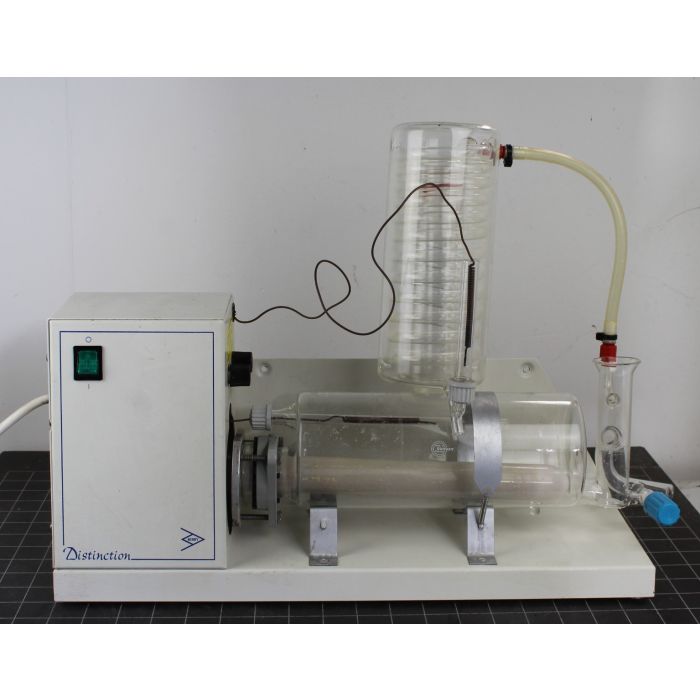

Stuart Distinction Water Still D4000

Stuart Distinction Water Still D4000

All glass construction
Two independent safety thermostats
Safety reservoir full shut off
Wall mountable
Silica sheathed heaters

All glass construction with silica sheathed heaters ensures top purity distillate at an economical price. Fitted with a control device to turn off the heater when the collecting reservoir is full. Prevents overflow if the still is inadvertently left switched on when unattended. With two independent safety thermostats to prevent over heating in the event of an interruption to the water supply.

The unique condenser design ensures that the droplets of distilled water remain in contact with the cooling coil for the longest possible time producing cold distilled water and pre-heating the boiler feed to increase efficiency.

Built in acid addition funnel and drain stopcock allow easy de-scaling without dismantling the glassware. The stand is pre-drilled to facilitate wall mounting.

Output 4 litres/hr, single distilled
Pyrogen content * Pyrogen free
Water supply 1 litre/min, 3 - 100psi, (20-700kPa)
Electricity supply 220 or 240V, 50-60Hz, single phase
Power requirement 3kW
Dimensions (w x d x h) 540 x 160 x 410mm

Serial# G02677

PDF Manual
