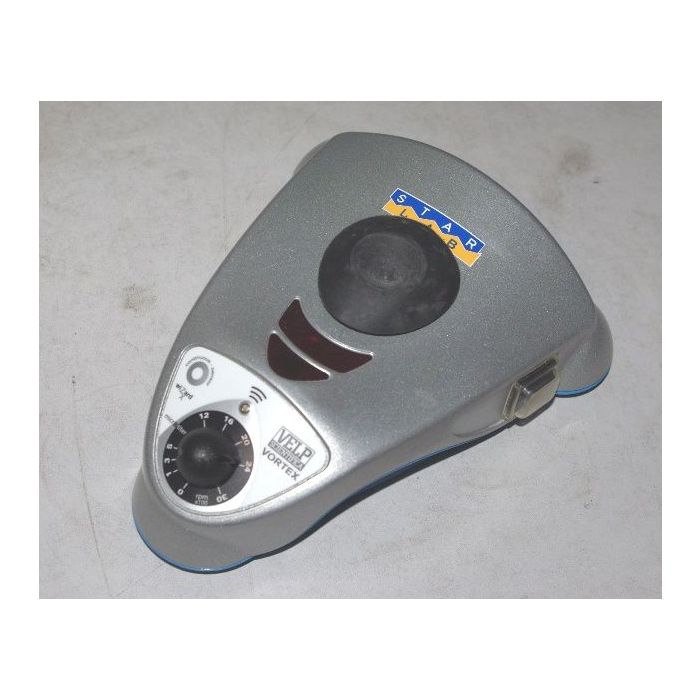

Starlab Vortex Mixer with IR sensor

Starlab Vortex Wizard mixer with infrared Sensor

Vortex Wizard incorporates an optional Infrared (IR) motion detector which automatically starts the vibration

when a tube crosses the sensor field.

The variable vibration speed allows low speeds for the gentle mixing of samples or higher speeds for

vigorous vortex mixing and resuspending cells or chemical pellets

Ergonomic, low-profile design and anti-slide feet for bench stability

'Sensor’ mode: Infrared detects the presence of the test tube and automatically starts vibration

'Continuous’ mode: with the possibility to combine with the wide range

of accessories to suit the most diverse of needs

No pressure needed to maintain vibration

Use in cold rooms or incubators

Speed range:                                  0 - 3000 rpm*
Speed setting:                                 Analogic
Speed control:                                Electronic
Operating temperature range:    5 °C to 40 °C (max. humidity 80%)
Operating modes:                         Two: sensor or continuous
Type of movement:                        Orbital (4.5mm diam)
Maximum load:                               0.5 kg
Materials:                                         Unit: Zinc alloy die cast and technopolymer. Cup head:SEBS Foamed attachments: PE. Feet: MQ/MVQ. Control panel: PET
Power:                                             15 W
Power input:                                    AC 100-240 V, 50-60 Hz, 0.5 A
Power output:                                 DC 12 V, 1.25 A
Safety:                                              Electronic protection degree IP 42-EN 60529. Pollution degree 2-EN61010-1
Weight:                                            2,2 kg
Dimensions (WxDxH):                 180 x 220 x 70 mm

Serial# 58977
