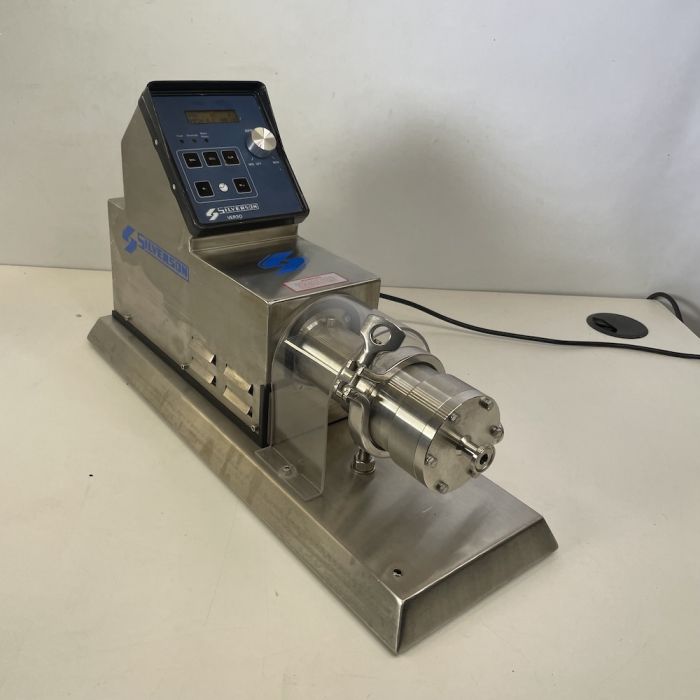

Silverson Verso Laboratory High Shear In-Line Mixer

Silverson Verso Laboratory High Shear In-Line Mixer

The Silverson Verso Mixer is a versatile and compact benchtop in-line mixer designed for laboratory and pilot-scale applications. It offers efficient high-shear mixing, making it ideal for process development, research, and small-scale production. The mixer features a self-pumping design, ensuring continuous in-line operation while delivering uniform particle size reduction and rapid mixing. The work head provides precise control over mixing intensity, allowing for consistent results across a range of viscosities and formulations.

Features:

• Easy-to-read RPM display
• Single stage work head
• Modular design allows easy disassembly for cleaning
• Self-pumping
• Maximum operating pressure: 150psi
• 0.75” Tri-clamp inlet/outlet connections
• Single mechanical shaft seal
• 316L stainless steel construction

In very good operating and cosmetic condition, images form part of the description.

Specification.

• Motor: 0.75 kW (1 hp) with variable speed control.
• Speed: Nominal maximum of 9,000 rpm.
• Capacity: Self-pumping, up to 2,400 liters per hour.
• Connections: 1/2” (or 0.75”) Tri-clamp inlet/outlet.
• Construction: 316L Stainless Steel wetted parts.
• Dimensions: 20 x 62 x 34cm (w x d x h)
• Weight: 20kg
• Electric supply: 240V 16A
