SAM 12 Medical Suction Unit

SAM 12 Medical Suction Unit

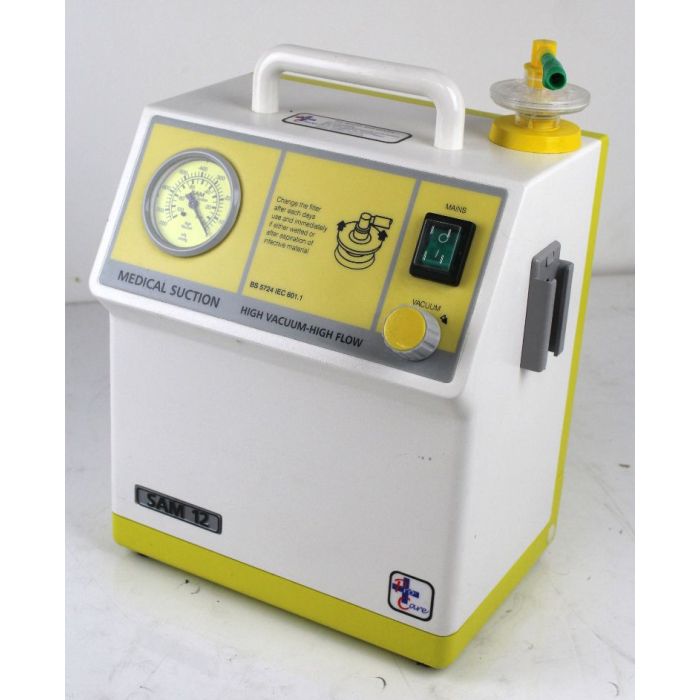

The SAM 12 aspirator is a top quality surgical suction unit designed to be highly adaptable. The SAM 12 is a high flow, high vacuum unit ideal for use in general wards, accident and emergency, minor operating theatres, intensive care and also as a backup unit for hospitals and dentistry clinics. Its reputation for reliability and ease of operation has established it among the most widely used units in the medical world today.



The unit incorporates an MQ25 oil free diaphragm vacuum pump that requires minimal maintenance and helps prevent cross contamination. The MQ25 also benefits from an enclosed crankcase for quiet operation, IP44 totally enclosed fan cooled (TEFC) permanent capacitor motor with long life sealed bearings and thermal protection.
The SAM 12 has multiple safety features including overflow control valves and an internal hydrophobic filter to minimise the risk of contamination.



The unit is fitted with a bacterial filter externally but can be fitted with a hydrophobic filter if required.



Vacuum 0 to 0.85 bar / 0 to 650 mmHg
Flow Rate 30 l/min
Noise Level
Noise Level 50 dB



PDF Manual



DOM May 2006



Serial# 0506-1211



Dims 22cm (D) x 26cm (W) x 37cm (H)
