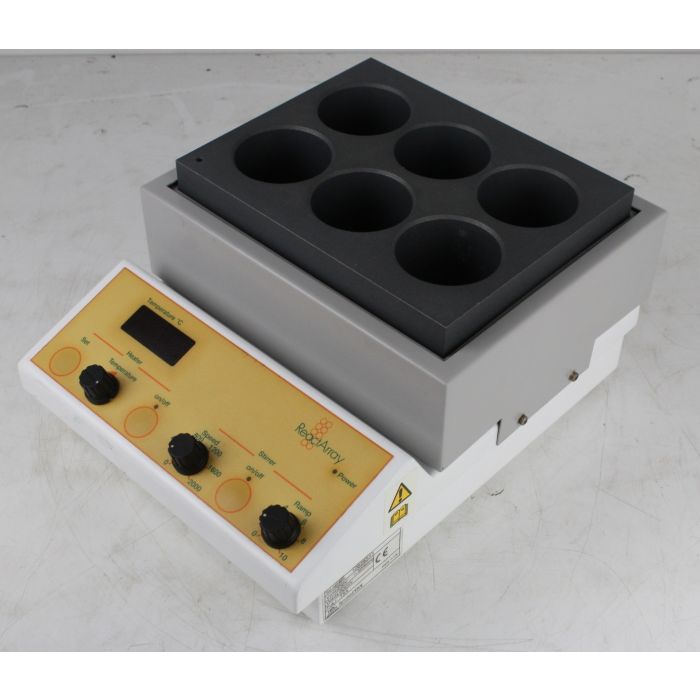

Reactarray STEM RS600 Heater/Stirrer Reaction Stations (Barnstead RAR-034)

Reactarray STEM RS600 Heater/Stirrer Reaction Stations (Barnstead RAR-034)

Reaction Stations enable parallel synthesis to be carried out by offering the same controlled temperature and stirring rates at several reaction positions simultaneously.

Heating and stirring Reaction Stations can be used for a wide range of applications from simple synthesis to process optimisation. High performance magnetic stirrers beneath each sample position ensure maximum coupling between the stirrer bar in the sample and the powerful motor.

The unit has a powerful stir speed from 400 to 2000rpm, and permits both manual, and external control via the RS232 interface port. It has a compact footprint for easy integration onto a robotic platform.

Adaptor sleeves can be used to accommodate non-standard vessel sizes.

The well-insulated reaction unit keeps the casework “cool-to-touch”,gives quick heat-up times, excellent temperature uniformity across the block, and a thermal cut-out eliminates runaway conditions. The combination of precise electronic control and rugged design ensures operator safety, while a PTFE coating protects the block from chemical spills.

6-position reaction station
57.5mm diameter vessels
Can accommodate 40mm and other diameter vessels with appropriate adaptor sleeves
Sample sizes up to 250ml
Controlled temperature range from ambient to 150ºC
Manual and external control via the RS232/RS458 interface port
Powerful stir speed from 400 to 2000rpm
Compact footprint for easy integration onto a robotic platform

Soft start (to full ramp) 0 - 10mins (Adjustable)
Temperature range (ambient) Ambient to 150ºC
Temperature stability ±0.5ºC
Time to max/min temp 15mins
Interface port RS232 & manual
Dimensions (w x h x d), mm 248 x 157 x 312

Serial# 10625533
