Reach in Room, Temperature and Humidity Stability Chamber, ICH Environmental Chamber from Vindon

Please call...
SKU
G159

Reach in Room, Temperature and Humidty Stability Chamber, ICH Environmental Chamber



3 Units.  4 door, 3 Door and a single Door. Sold as a Set or Seperately

Price Includes A Polar Cooler for each unit

Operating Conditions:

Vindon Scientific stability storage rooms are generally specified to cover the ICH conditions of 25ºc/60%RH, 30ºc/65%RH & 40ºc/75%RH. Rooms will operate with in the limits of ±2ºc and ±5%RH. This gives users the flexibility of changing the set point of the room should future requirements ever change

Indirect Refrigeration

The standard “ICH - type” stability storage rooms use an indirect refrigeration system to help control the internal temperature of the room. An external chiller uses a direct refrigeration system to cool a tank of water to a specific temperature directly related to the operating set point of the room. This cooled water is then pumped to a cooling coil that is located in the base of the reach in room and works together with the heaters to provide accurate temperature control.

The temperature of the coolant is monitored by a sensor and controller that switches on the fridge to maintain the required water temperature.

Room Shell:

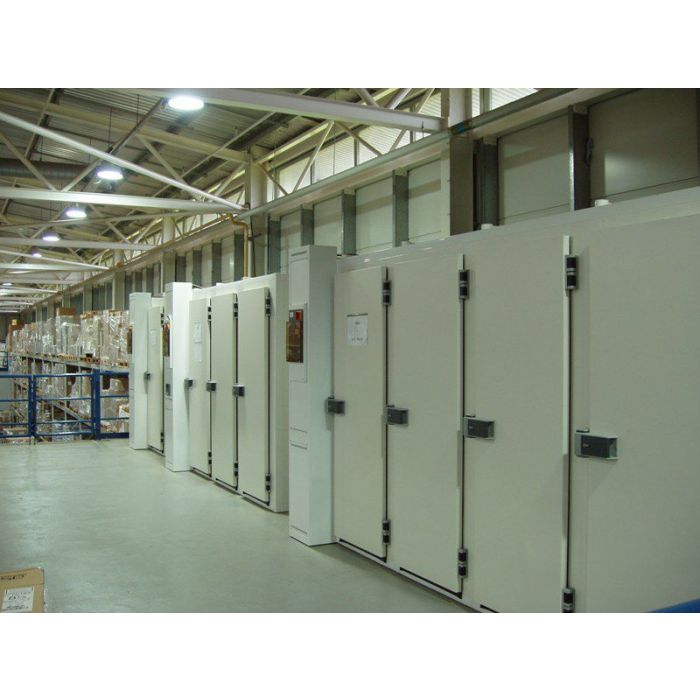

The rooms are constructed from self supporting pre-fabricated, 60mm or 100mm thick panels, which lock together by a “cam-lock” system. The panels comprise of two steel skins that are injected with CFC free, polyurethane foam, thus creating an insulated “sandwich” panel.

Dimensions:



External sizes

Internal sizes

Volume



Height

Width

Depth

Height

Width

Depth

1 door

2220

1320

1020

1700

1080

900

1.65

















3 door

2220

3120

1020

1700

2880

900

4.40

4 door

2220

4020

1020

1700

3780

900

5.78



Date:

Installed in 2004, Condition is as new





    More Information
    SKU G159
    Condition Used
