Pico Technology TC-08 Temperature Data Logger, USB Powered

Wanted
SKU
P010

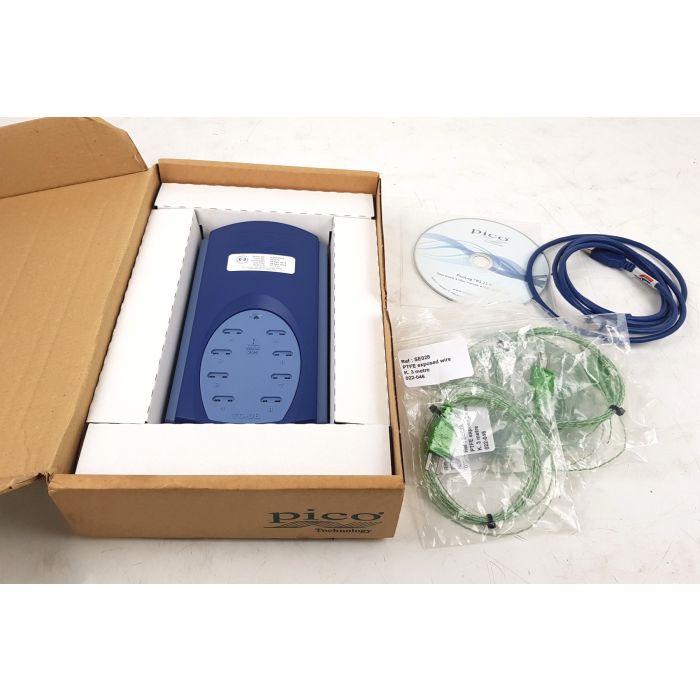

Pico Technology TC-08 Temperature Data Logge, USB Powered


With 6 x PTFE Thermocouples, unused sealed in original packing
Software Disc, Picolog R5.23.0
Pre owned, unused in the box
DOM: 2015

This easy-to-use PC-based temperature data logger allows collection, analysis and display of up to 8 thermocouples. The data logger can be used with a diverse range of thermocouple types, making it a practical choice to suit most needs. It also features USB connectivity and a programmable alarm, allowing limits to be set for each channel.
Features & Benefits

Works with thermocouple types B, E, J, K, N, R, S and T
Wide temperature range, with 20 bit vertical resolution
Built in cold junction compensation
No power supply required, power is drawn from USB port
Data can be displayed or exported in graphical and numerical format
Min/Max/Average or filtered values can be recorded and displayed
Max/Min alarm limits can be set for each channel
Note

PC Requirments

Windows 7, 8 or 10, 32-bit or 64-bit
macOS 10.9 (Mavericks) or later, 64-bit only
Linux (tested on Redhat, OpenSUSE and Ubuntu), 64-bit only
Raspbian for Raspberry Pi 4, 3B & 3B+

Not compatible with Windows XP, Vista, 3.11/95/NT

Supplied with-
USB connector cable and PicoLog data logging software download instructions

Features and Benefits

• High resolution and accuracy
• Expandable up to 20 units/160 channels
• Supports all the popular thermocouple types
• Built-in cold junction compensation
• Fast sampling rate up to 10 measurements per second (including CJC)
• Measures temperature ranging between -270°C and 1820°C
• Simple and complex programmable alarms
• Support with PicoLog 6 for Windows, macOS and Linux data logging software
• PicoSDK drivers for Windows, macOS and Linux included
• Data can be displayed or exported in graphical and numerical format



Attribute Value
Measurement Parameters Temperature
Sensor Type B, E, J, K, N, R, S, T
Number of Input Channels 8
Interface Type USB
Maximum Temperature Measurement +400 (T) °C, +910 (E) °C, +1200 (J) °C, +1300 (N) °C, +1370 (K) °C, +1760 (S) °C, +1820 (B) °C
Power Source Mains
Best Temperature Measurement Accuracy ±0.2 %
Dimensions 201 x 104 x 34mm
Alarm Yes
Includes Software
Temperature Measurement Resolution 0.025°C
More Information
SKU P010
Availability Out of Stock
Condition New
