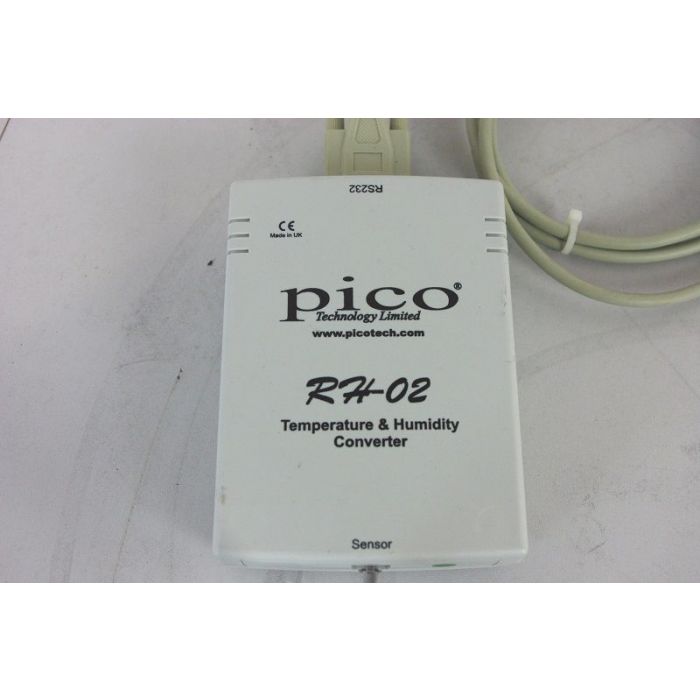

PICO RH-02 Humidity Data Logger

PICO RH-02 Humidity Data Logger with User Manual

The Pico RH-02 measures and records humidity and temperature on a PC. It uses built in sensors that are calibrated to give highly accurate measurements.

The RH-02 is very easy to use: just plug into the serial port of your PC and you are ready to take measurements. It is supplied with PicoLog data logging software and software drivers

for users who wish to write their own software.


Features

•Records temperature and humidity
•High accuracy
•No Sensors required
•No power supply required

Download site for software:
www.picotech.com


Specification:

Range
-20 to 70 °C (sensor)
0 to 70 °C (converter) 0 to 95% non condensing

Response time
10 seconds 15 seconds (slowly moving air)

Accuracy
±0.2 °C (0 to 70 °C) ±2.5% (0 - 90%)

Resolution
0.01 °C 0.01%

Dimensions
Converter: 100 x 135 x 35 mm (3.93 x 5.31 x 1.37 in)
 Sensor: diameter 22 mm (0.86 in), length 170 mm (6.69 in)
 Sensor to converter cable: 3 meters (9 ft 10 in)

Conversion time
2 sec

Output connector
D9 to serial port,
