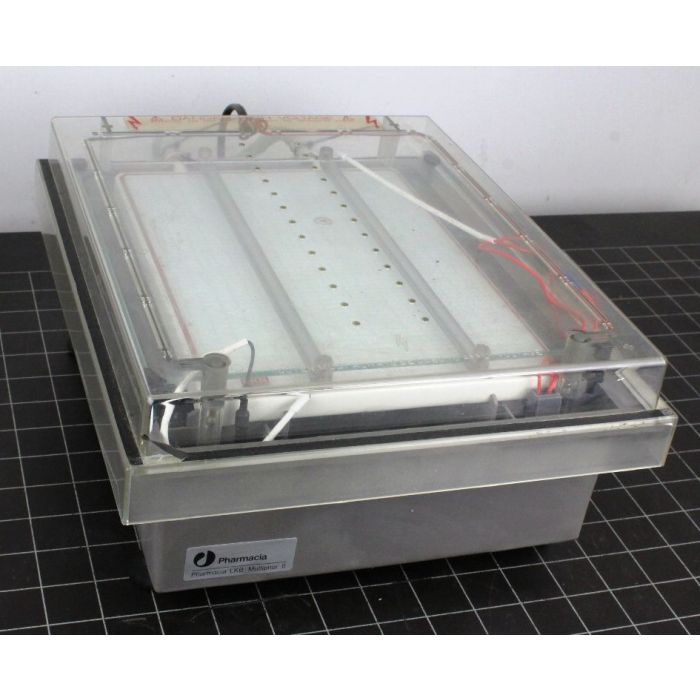

Pharmacia Multiphor II Electrophoresis Buffer Tank

The Multiphor II electrophoresis system is a versatile modular system for horizontal electrophoresis, isoelectric focusing, 2-D electrophoresis and electophoretic transfer.

Features:
    Buffer Tank is made of polypropylene, which is resistant to nearly all chemicals at room temperature.  Buffer tank contains four pin contacts
    Cooling plate - ceramic (aluminum oxide) measures 210x270mm, supports the gel, and provides uniform temperature control.
    Safety Lid - polycarbonate lid snugly fits the contours of the buffer tank
    Maximum Voltage- 3500 Vp-p
    Maximum Power- 100W
    Max Pressure Cooling plate- 0.5 bar
    Environment - +4- +40 degrees C, 20-95 % relative humidity
    Chemical resistance- wetted parts are resistant to solvents commonly used in electrophoresis and solutions containing inorganic and organic acids, alkalis and alcohols.

Configure the system for 1-D or 2-D protein electrophoresis, or DNA fragment analysis
Adjustable electrodes allow use of different sized gels up to 20 × 26cm
Select from a wide range of precast gels or cast gels for unique applications
Run up to 12 IPG strips (7–24cm) simultaneously
Allows cooling of ultra-thin gels efficiently and uniformly, through the ceramic cooling plate, for improved resolution and speed at high voltages
Particularly well-suited for ultra-thin gels (0.1-0.5mm) on glass or plastic supports
Also compatible with various types of buffer strips, eliminating the need for large volumes of liquid buffers

PDF Manual
