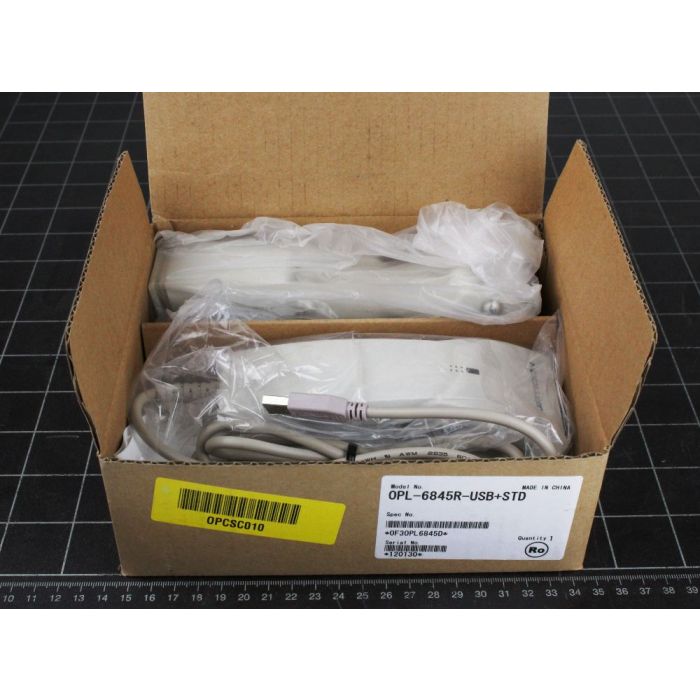

Opticon OPL-6845 Handheld Laser Barcode Scanner (Cream)

Compact and lightweight, the OPL-6845R is a high performance laser scanner which provides a fast and accurate scan, even when barcodes are printed with low contrast. When combined the integrated auto trigger and dedicated stand enables hands-free scanning.

RoHS compliance
Enhanced scanning performance
Collapsible modular stand
USB Interface

Barcode scanner Optics
•Light source: 650 nm visible laser diode
•Scan method: Bi-directional scanning
•Scan rate: 100 scans/sec
•Trigger mode: Manual, auto-trigger, stand detection
•Reading pitch angle: -35 to 0°, 0 to +35°
•Reading skew angle: -50 to -8°, +8 to +50°
•Reading tilt angle: -20 to 0°, 0 to +20°
•Curvature: R>15 mm (EAN8), R>20 mm (EAN13)
•Min. resolution at PCS 0.9: 0.127 mm / 5 mil
•Min. PCS value: 0.45
•Depth of field: At PCS 0.9, Code 39
40 - 500 mm / 1.57 - 19.69 in (1.0 mm / 39 mil),
20 - 350 mm / 0.79 - 13.78 in (0.5 mm / 20 mil),
20 - 200 mm / 0.79 - 7.87 in (0.25 mm / 10 mil),
20 - 100 mm / 0.79 - 3.94 in (0.15 mm / 6 mil),
30 - 70 mm / 1.18 - 2.76 in (0.127 mm / 5 mil)
