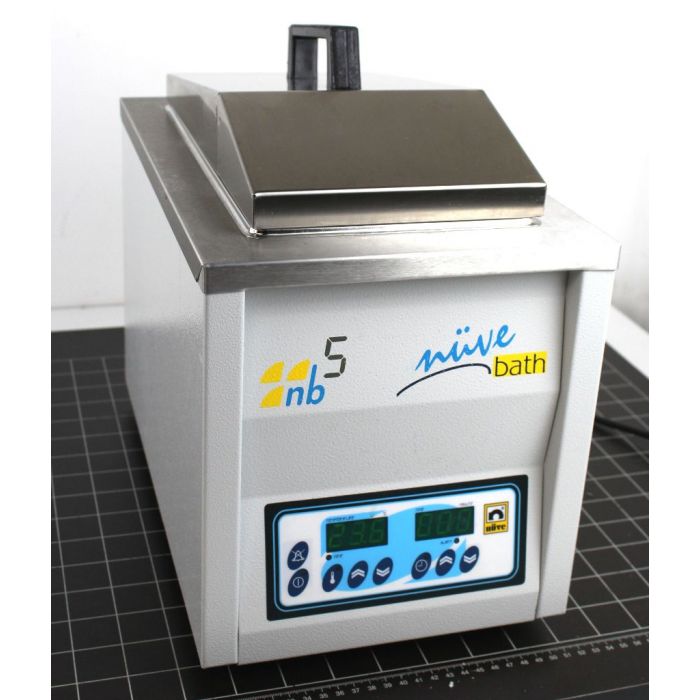

Nuve NB5 Unstirred Water Bath

Nuve NB5 Unstirred Water Bath



Robust and reliable
Apparently simple, the NB series of unstirred water baths is nevertheless controlled by a PID microprocessor system giving excellent temperature precision, assisted by the triple insulation, for this class of instrument. A timer enables set protocols to be observed.
Most of the footprint of the water bath is usable to accept samples, since there is no pump, circulator or heater inside the chamber. A convenient drain permits fast discharge of the water. Their large displays are easily visible from across the laboratory.
Designed for many general and special applications in microbiology, research and industrial  laboratories.



• Temperature range: Ambient Temperature +5°C / 99.9°C
• Excellent temperature control of liquid by programmable PID microprocessor control system
• Highly visible dual display for temperature and time
• Delayed start timer
• Seamless stainless steel tank for easy cleaning
• Excellent temperature uniformity and stability by triple insulation
• Footprint almost equal to the working area to save bench space

Type                          Unstirred
Temperature Range           Ambient Temp. +5ºC / 99.9ºC
Temperature Sensor           Fe-Const
Tank Volume, liters          6
Useful Volume, liters          4
Control System           Programmable PID Microprocessor
Temperature Set and Display Sensitivity  0.1 ºC
Temperature Uniformity          <40ºC ±0.2ºC
Temperature Stability    ±0.1ºC
Timer                           99.9 hours + Hold position
Delayed Start Timer           1 min. to 99.9 hours
Power Consumption           600 W
Power Supply                   230V, 50/60 Hz
Internal Material         304 Stainless steel
External Material           Epoxy-Polyester powder coated steel
Internal Dimensions (WxDXH) mm   150x300x150
External Dimensions (WxDxH) mm  235x490x275

Serial# 020448
DOM 2006
Original Manual Included
