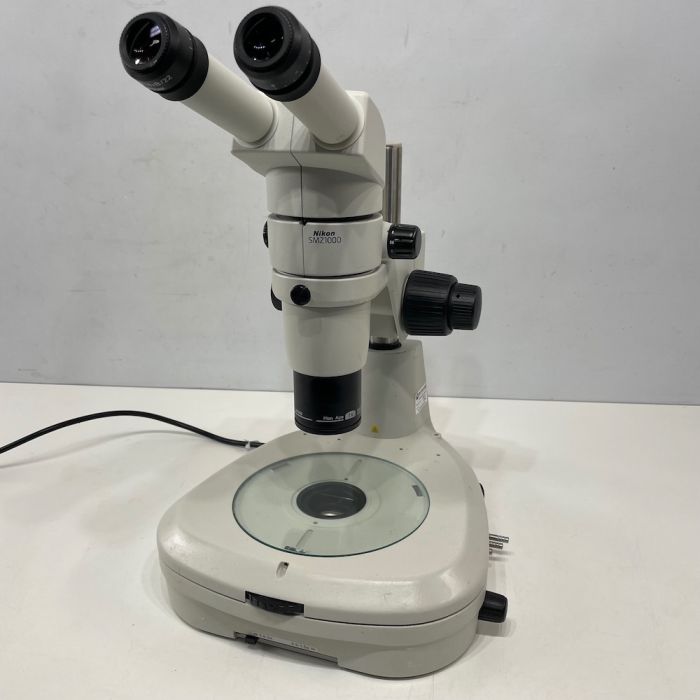

Nikon SMZ 1000 Stereo Microscope Plan Apo 1.0x WD70 C-W10x/22

Nikon SMZ 1000 Stereo Microscope Plan Apo 1.0x WD70 C-W10x/22

The Nikon SMZ1000 is a high-resolution stereo microscope for demanding routine and research applications in biology, materials testing, electronics, quality assurance and forensics. With an excellent optical zoom system, high-quality components and an ergonomic design, it delivers brilliant, high-contrast images with high depth of field.

The system is equipped with a Plan Apochromat 1.0 lens (WD 70 mm) for distortion-free, color-accurate images over the entire field of view. The C-W10 /22 wide field lenses offer a generous field of view and allow comfortable working even during long sessions.

Included-

1. Binocular tube with 2x C-W10x/22 eyepieces
2. SMZ 1000 Microscope bodies
3. Plan Apo 1x WD 70 lens
4. Focusing drive C-FMC
5. Translucent tripod C-DSS230

In very good condition, images form part of the description.

Specification

• Zoom factor: 0.8  - 8.0  (10:1 zoom ratio)
• Total magnification (with 1.0 lens and 10 eyepieces): 8  - 80
• Objective lens: Plan Apo 1.0, WD 70 mm (working distance)
• Eyepieces: Nikon C-W10 /22 (wide field)
• Field of view: Ø 22 mm
• Illumination: transmitted light stand, dimmable settings

Location H0
