Newport M-SG-39-2 Breadboard 1M x 1M with 5cm Access Hole and Pneumatic Docking table

Please call...
SKU
H198

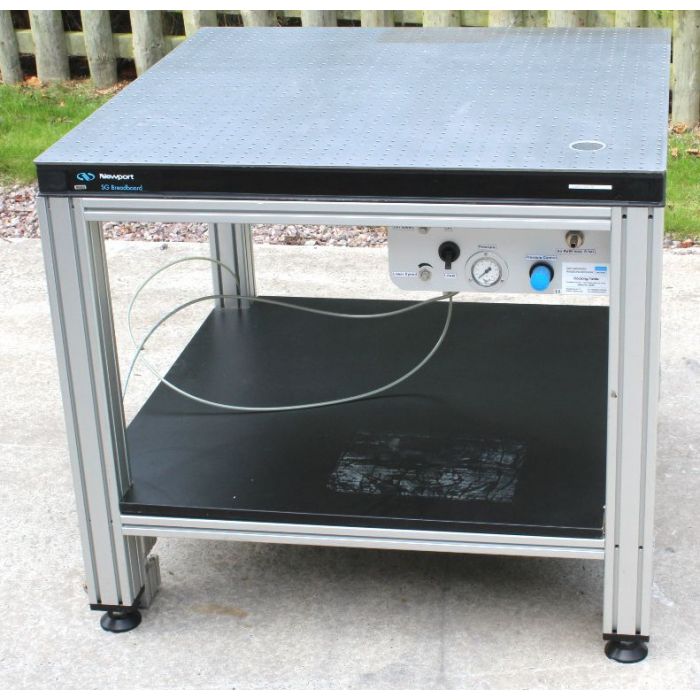

Newport M-SG-39-2 Breadboard 1M x 1M with 5cm Access hole and Pneumatic Docking table

1.Scientific Grade 4.8 mm Skin Honeycomb Optical Breadboard

  •     High performance breadboards for demanding applications
  •     Broadband integrated damping with vertically bonded honeycomb core
  •     4.8 mm 400 Series Stainless Steel working surface for maximum stiffness
  •     19 mm deep sealed holes with easy clean polymer cup


The M-SG-39-2 Scientific Grade Honeycomb Core Optical Breadboard has a 1000 mm width, a 1000 mm length, and is 59 mm thick with Metric M6 holes on 25 mm grid with 12.5 mm borders. The M-SG Series provides rock-solid stability and rigidity to support demanding research applications. It demonstrates an outstanding <±0.004 in. flatness over two square feet. The M-SG Breadboard also offers a 4.8 mm ferromagnetic steel surface, enhanced damping, sealed holes, and a steel honeycomb core.

2.Aluminium Docking Table

Custom built by Gert Meidinger, fitted with pneumatically controlled legs, custom built control panel and all  "Festo" branded components including pressure reservoir (tank) so table can be operated without permanent connection to compressed air supply.


Breadboard Dims 100 cm (D) x 100cm (W) x 5.9cm (H)

Table height 84cm measured to fixed feet - increasing dependent upon activation (pressurisation) of pneumatics

We currently have a number of Newport SG Breadboards available in differing sizes and with both passive and active tables. Pls call with any enquiries.

More Information
SKU H198
Condition Used
