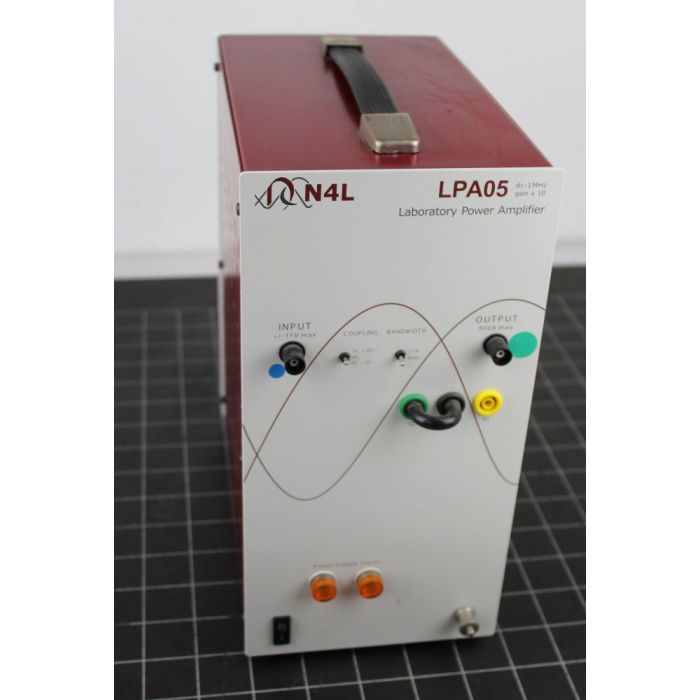

N4L LPA05 Laboratory Power Amplifier

N4L LPA05 Laboratory Power Amplifier
LPA05 laboratory power amplifiers provide wide bandwidth signal amplification at up to 8A peak, extending the range of industrial and laboratory applications into which the LPA series can be used.
The LPA05 laboratory power amplifier can also be used anywhere where there is a need to boost a signal either in voltage or current up to 1MHz.
Combines DC accuracy with wide bandwidth to faithfully reproduce complex waveforms, driving loads that may be capacitive, inductive or resistive.
 High frequency and current into low impedance
 Fixed x10 gain
 Stable into any load
 High slew rate
 Isolated BNC or 4mm touchproof output sockets
 Ideal for Impedance analysis at high current bias
Max Output Voltage 80V pk-pk (28Vrms)
Max ac output current (>100Hz) 3A rms 5A pk
Max dc output current 2A
Serial# 296
Dims 25cm (D) x 15cm (W) x 30cm (H)
PDF Manual
More Information
SKU L259
Availability Out of Stock
Condition Used
