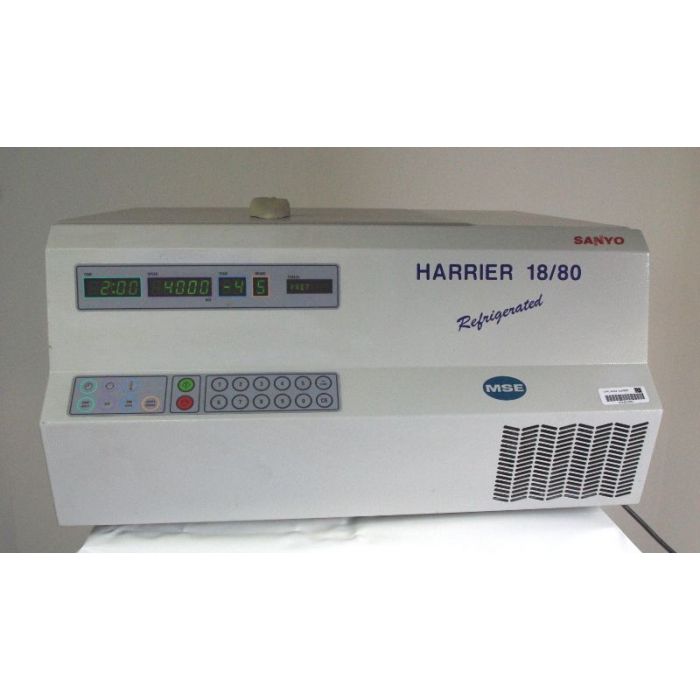

MSE Sanyo Harrier 18/80R Refrigerated Centrifuge

MSE Sanyo Harrier 18/80R Refrigerated Centrifuge

The Harrier 18/80R is the refrigerated version of the Harrier 15/80 centrifuge.  A successor of the popular Mistral 2000 range,
the Harrier 18/80R is a benchtop centrifuge designed for routine laboratory use where refrigeration is needed. As you would
expect from any MSE centrifuge, the Harrier 18/80R represents excellent value for money in terms of performance, ease of use,
safety and reliability.

    Intelligent Microprocessor Control
    Inverter Controlled Brushless Motor
    Automatic Rotor Identification System
    Set And Run In RCF Or RPM
    Key Lock Facility
    Instant RCF Reading
    Last Run Memory
    Green Led Display
    Overspeed Protection System
    Full Lid Interlock
    Imbalance Detection System
    Self Diagnostics
    Status Indicator
    CFC - Free Refrigerant Gas (Harrier 18/80R)
    Fast Efficient Cooling (Harrier 18/80R)
    Precool Facility (Harrier 18/80R)
    CFC-Free Insulation (Harrier 18/80R)
    Simple And Easy To Use
    Easy To Service
    Superior Lid Lock Mechanism
    9 Acceleration Rates
    9 Brake Rates
    Wide Range Of Accessories
    All Accessories Fully Autoclavable
    Sealed Buckets With Porton Down Approval
    Sealed 24 Place Microtube Rotor Available
    Language Options Available
    Selectable Temperature Range -5C To +40C (Harrier 18/80R)

Automatic rotor identification system

The Harrier range of benchtop centrifuges incorporates an automatic rotor identification system. This important feature ensures
that the centrifuge recognises the rotor in use and prevents it from being used beyond its safe maximum speed. As the centrifuge
identifies the rotor in use, it can also work out the ‘g’ force at any set speed. This means the centrifuge can convert rpm to
‘g’ and vice versa once in use.

Microprocessor controlled induction drive

The Harrier range utilises an induction motor for maintenance free long life operation. This motor has no carbon brushes so not
only is there no need for routine maintenance but there is no build-up of carbon dust inside the centrifuge. This makes it
suitable for use in clean environments. Microprocessor control combined with the frequency driven motor ensures accurate
operation for run to run reproducibility.


The Harrier 18/80R refrigerated benchtop centrifuge combines all the capabilities of the proven Harrier 15/80 in a refrigerated
format. The selectable temperature range is from −5 to +40 degrees celsius and uses CFC–free R134a refrigerant gas. This means
that in refrigerant terms, the Harrier 18/80R complies with all the regulations pertaining to the Montreal Protocol. A precool
facility allows the bowl to be cooled to the required temperature prior to use.
High speed microtube rotor

The use of the induction motor provides another benefit in that higher rotational speeds can be achieved. This allows the
Harrier range to have a maximum speed in excess of 15,000 rpm with the 24 place microtube rotor. In the case of the Harrier
18/80R refrigerated centrifuge, the microtube rotor can achieve speeds of up to 18,000 rpm giving a maximum ‘g’ force of 28,980g.

Permissible relative humidity    80 %
Protection class according to DIN EN 60529    IP 40
Voltage    100 - 240 V
Frequency    50/60 Hz
Power input    30 W

Complete with rotor type "48124-141"

Note some slight damage to the lid release handle tho this operates successfully

Depth     580mm x Width     670mm x Height     355mm

Weight     41 kg

Serial# A05021

PDF Manual available
