Moveable Micrometer for Ultra-Fine Measurements in Eyepiece MM-OSM-MX

Moveable Micrometer for Ultra-Fine Measurements in Eyepiece MM-OSM-MF

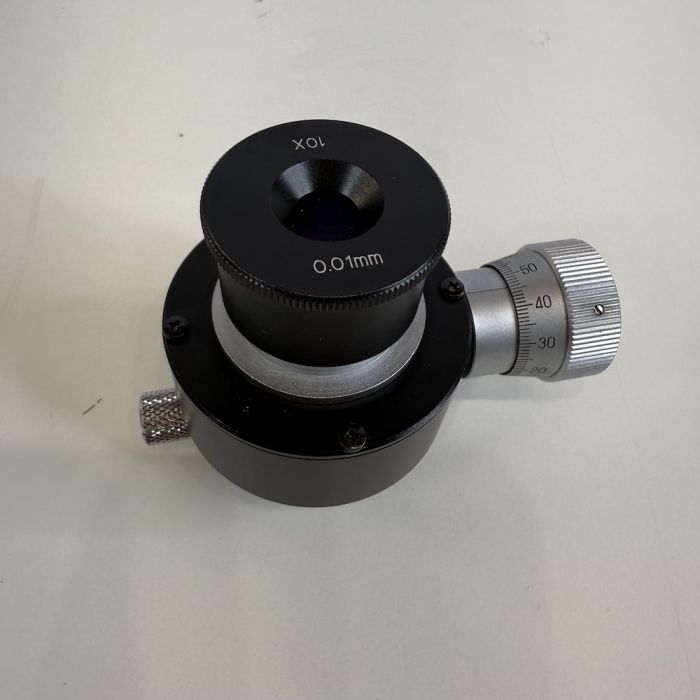

Moveable Micrometer for Ultra-Fine Measurements in Eyepiece for MM Series Microscopes MM-OSM-MF. The traveling micrometer lens magnification has 10x magnification, with a scale comprising eight 8 mm divisions and a movable indicator line. The movable indicator line has X shaped crosshairs formed of two vertical lines, and can be moved to the right or left by rotating the handle on the right.

One turn of the handle moves the crosshairs 1 mm, or 100 scales (1 mm is 100 increments). This scale can be used to read the degree of movement. Connection is possible with MF and MFS series only, and the unit is ideal for detailed measurement.

For eyepiece tube connection 22mm id

Location Dolly 9
