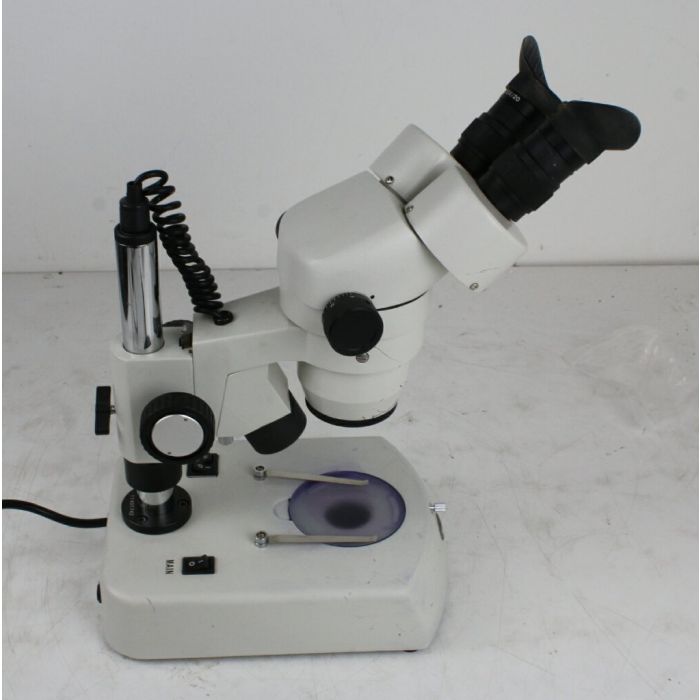

Motic SMZ140 Stereozoom Microscope


Motic SMZ140 Stereozoom Microscope

Make use of the convenience and versatility of seeing a large part of your sample image at 10X magnification, then zooming continuously to close-up details at 40X…or any point in between. The SMZ140 Series offers a high optical performance combined with a special designed incident and transmitted intensity controlled halogen illumination.

• 45° inclined binocular head, rotates 360°
• Beam splitter from left eyepiece tube
• Widefield eyepieces 10X/20mm with diopter adjustment
• 1:4 Zoom ratio, total standard magnification 10X through 40X with click stops at 10X, 20X, 30X and 40X
• 80mm Working distance
• Heavy Duty rack and pinion focusing block with slip clutch
• Pole stand with incident and transmitted Halogen Illumination with separate on/off switch
• Top Light: 12V/15W; Bottom Light 12V/10W with combined intensity control
• 80mm stage plate

Note some dye staining on body, but nothing to affect optical performance

Serial# 11401742

More Information
SKU P020
Availability Out of Stock
Condition Used
