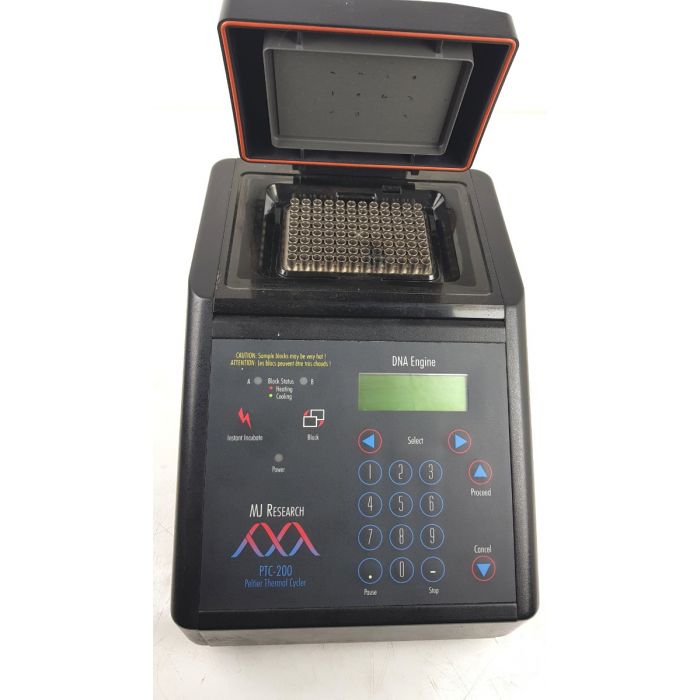

MJ Research PTC-200 Peltier Thermal Cycler, 96 microplate

MJ Research PTC-200 Peltier Thermal Cycler, 96 microplate

Single, which holds 1 x96 well Microplate cassette or 0.2ml tubes (serial no:AL074742)

The MJ Research PTC-200 Thermal Cycler utilizes interchangeable sample blocks and heat pump assemblies,
which allow the user to change format easily between runs while retaining NIST-traceable accuracy.
This PTC-200 comes with a 96-well alpha block and can accommodate 60 well blocks, 384 well blocks, dual 48 well blocks, and many others,
including specialty blocks like the insitu.
The precise Peltier effect heat pumps deliver the full temperature range of 0° to 100°C electronically, all in a compact, small-footprint instrument.
The MJ Research PTC-200 offers speedy ramping rates of up to 3.0/sec in models that hold 0.2ml tubes or V-well plates.
It also features unparalleled temperature homogeneity of ±0.4°C within 30 seconds of arrival at 60°C for all standard models.
The PTC-200 has a large memory and amiable software that allows control over virtually every thermal parameter.

Thermal Range 5° to 105°C, but no more than 30°C below ambient temperature (4° to 100°C for the slide Chambers Alpha Unit)
Thermal Accuracy ±0.3°C of programmed target at 90°C- NIST-traceable
±0.4°C well-to-well within 30 seconds of arrival at 90°C (for most Alpha units; see specifications for individual Alpha Units)
Thermal Uniformity 90°C (for most Alpha units; see specifications for individual Alpha Units)
Parrallel 1x 25-pin 8-bit parallel interface printer port
Serial 1x 9-pin RS-232 serial port for printer or remote use
IEEE one IEEE-488 bidirectional general purpose interface bus
Display one 20 x 4 LCD alphanumeric display
W x L x H 12 x 12 x 12
Weight lbs 25
