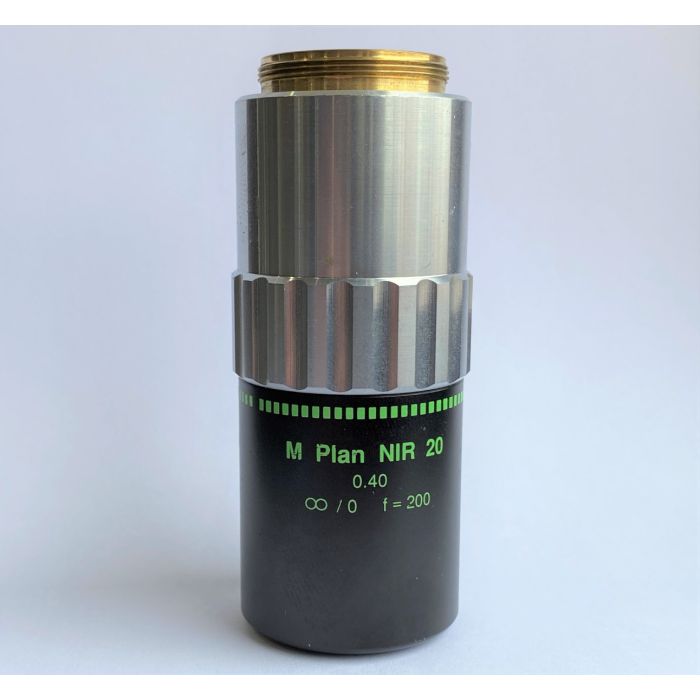

Mitutoyo M Plan NIR 20X Infinity Corrected Objective

Mitutoyo M Plan NIR 20X Infinity Corrected Objective

Magnification:20X
Numerical Aperture NA:0.40
Compatible Tube Lens Focal Length (mm):
Focal Length: 200mm
Compatible Cover Glass Thickness (mm):N/A
Depth of Field (μm):1.70
Design Wavelength DWL (nm):532, 1064
Horizontal Field of View, 1/2" Sensor:0.32mm
Field of View, 18 Diameter Field Eyepiece (mm):0.9
Horizontal Field of View, 2/3" Sensor:0.44mm
Field of View, 24 Diameter Field Eyepiece (mm):1.2
Focal Length FL (mm):10.00
Length excluding Threads (mm):69.5
Manufacturer:Mitutoyo
Maximum Sensor Format:2/3"
Maximum Diameter (mm):37
Mounting Threads:M26 x 36 TPI
Note:Enhanced transmission for the fundamental and second harmonic of Nd:YAG laser (1064nm and 532nm). Example Application: cutting and trimming of semiconductor wafer and circuits
Parfocal Length (mm):95
Resolving Power (μm):
0.7Style:Infinity Corrected
Type:Microscope Objective
Weight (g):300.00
Working Distance (mm):25.5
Wavelength Range (nm):420 - 1064
Immersion Liquid:N/A
Operating Temperature (°C):-5 to +45
