MiniKros Pilot System PVDF Turbine flow Meter (High Flow)

MiniKros Pilot System PVDF Turbine flow Meter (High Flow)

Spectrum Laboratories Inc

Permeate Flowmeter

Model# 845

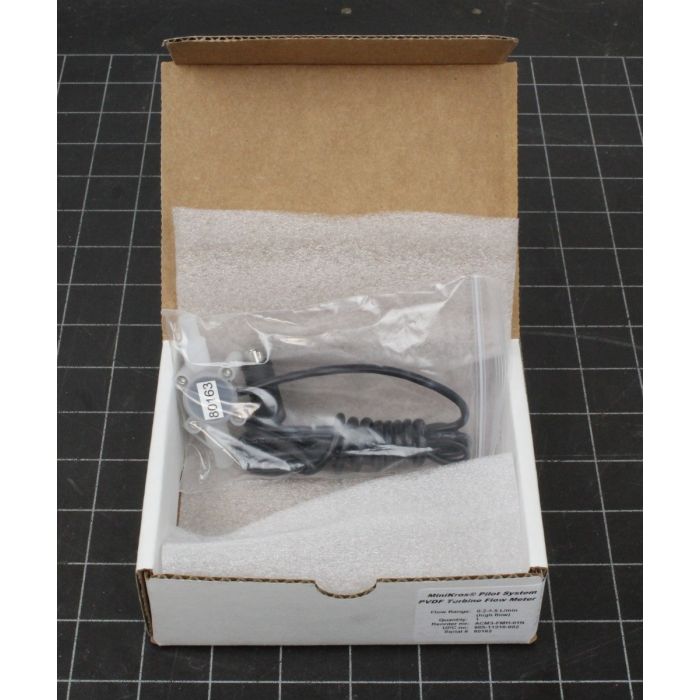

New and unused sealed in original manufacturers packaging

The turbine rotates freely on robust saphire bearings while sensors detect the revolutions. The fluid contact materials of construction (PVDF for the body and a silicone O-ring) are USP Class VI approved

Re0rder# ACM3-FMH-01N

Flow Range 0.2 - 4.5 Litres/Minute
Linearity % FSD 1.5
Approx K Factor 3500

Accuraccy +/- 1.5 - 2% FSD
Repeatability +/- 0.1 % reading over 90% of range
Pressure Ratings 145 psi (10bar)
MAx Temp 257°F (125°C)
8mm.12mm OD hose Barb connections

Serial# 80163
