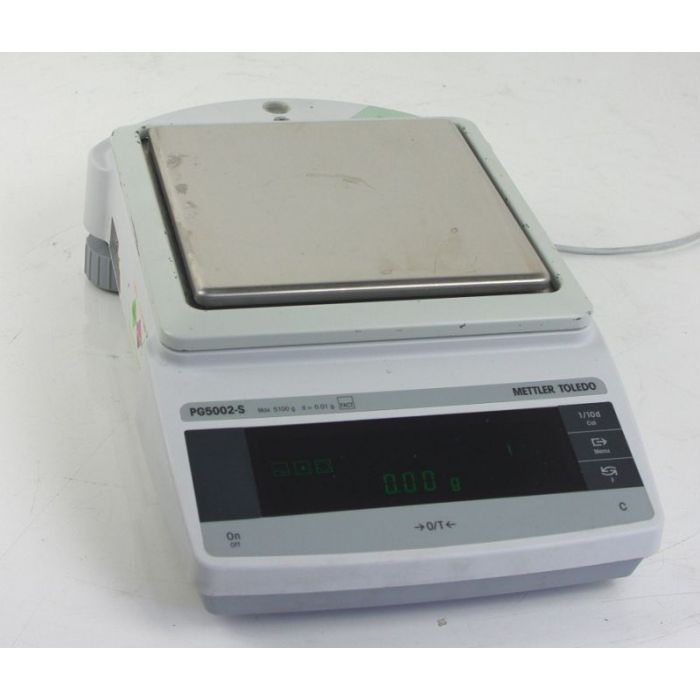

Mettler Toledo PG5002-S DeltaRange Balance

Please call...
SKU
H104

Mettler Toledo PG5002-S DeltaRange Balance

When precision, accuracy and reliability are required, the Precision Balance
PG5002-S DeltaRange offers you the best of all three. Be that the movable fine
range or the MonoBloc weighing cell for highest weighing performance under any
circumstances.

The chemically resistant housing and chassis construction, the stainless steel
weighing pan of 165 x 165 and the permanent overload protection show that this
balance is designed for hard daily use. Features such as the built-in RS232-C
interface or the Fully Automatic Calibration/Adjustment FACT make the PG5002-S
DeltaRange an ideal precision balance for daily use in research laboratories and
production areas, where accurate and reproducible results are important.


Features and Benefits

    DeltaRange: The PG5002-S DeltaRange, with its movable fine range of 1000 g
and higher resolution (0.01 g), enables you to weigh or add small amounts in
large vessels or samples.
    MonoBloc Technology: Guarantees best weighing performance and is extreme
reliable due to high mechanical integration.
    Automatic Calibration (FACT): For reproducible results, recommended when
working with a QM system (GLP/GMP/ISO).
    VFD-Display: Gives you best contrast and readability under all
circumstances.
    DeltaTrac: Analog filling guide, shows at a glance how much of the total
weighing capacity is used, regardless of the weight value actually displayed.
    RS232-C interface: For connection with systems and computer controlled
applications as well with printer, auxiliary display and other peripherals.
    Advanced weighing: Applications like Piece counting, simple formula weighing
and animal weighing are already built-in.


Specifications
Maximum capacity:     1000 g / 5100 g
Readability:     0.01 g / 0.1 g
Taring range:     0...5100 g
Repeatability:     0.008 g / 0.03 g
Linearity:     ± 0.02 g / 0.05 g
Stabilization time [typical]:     1...2 s
Adjustment with internal weights:     FACT (fully automatic self-calibration)
Adjustment with external weights:     2000/3000/4000/5000 g
Sensitivity (temperature drift):     ± 3 ppm/°C
Sensitivity (long-term stability):     ± 0.0030 %
Interfaces:     RS-232C, Sub-D 9 pin
Size of weighing pan:     165x165 mm

Serial# 1119300077

Dimensions:     226x95x360 mm (WxDxH)

PDF Manual

More Information
SKU H104
Condition Used
