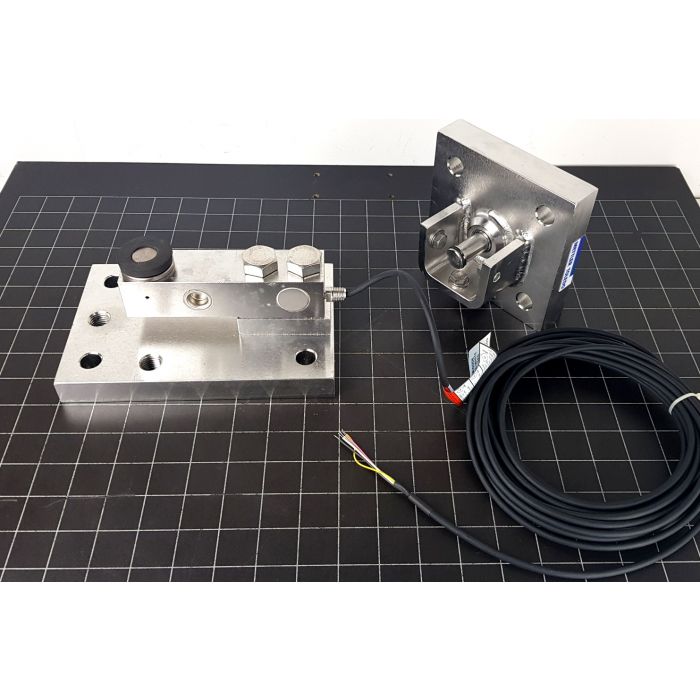

Mettler 0958 Flexmount Weigh Module,, with 0745A Load Cell

In stock

Mettler 0958 Flexmount Weigh Module, with 0745A Load Cell

Accurate, Reliable Weighing
Max 10Klb / 4400 Kg

Pre Owned but appears unused, in Manufacturers packaging

Tank Weighing

Flexmount weigh modules offer rugged construction and many features needed for accurate and reliable tank weighing.
Designed for easy and economical system integration.

0958 Flexmount Weigh Module

Flexmount weigh modules enable you to convert
a tank, silo or hopper into a weighing scale. The
0958 Flexmount can be adapted to a wide range of
applications, including tanks for filling, batching and
inventory management. Regardless of the application,
these easy-to-install weigh modules deliver accurate
and reliable performance. The self-checking function
allows for economical system integration. Flexmount
weigh module features are as follows:
• Capacity range 110kg - 20.4t
• Self checking for economic system integration
• Hermetically sealed stainless steel IP68
load cell (not 0744)
• Top plate rigidly located for easy installation
• Uplift protection
• Large range of thermal expansion/contraction
• Painted or stainless steel mounting hardware
• Global approvals standard on every load cell

0745A Beam Load Cell

Fully Approved

The 0745A is approved for use in various applications in Europe, Asia, America and almost everywhere else in the world.
If an approval is required, the 0745A probably already complies.
Even if needed for hazardous areas later, the 0745A is already prepared.0745A beam load cell features:
• OIML C3/C6 and NTEP III M 5000/10000 approvals
• ATEX/IECEx Zone1/2 and 21/22 approvals
• FM Class I,II,III Div 1&2 approvals for USA & Canada
• Stainless steel• Hermetically sealed design
• IP68, IP69K protection class

Serial No: 62165446GN

More Information
SKU P201
Availability In Stock
Condition Used
