Metrohm AUTOLAB 3 - Electrochemical Impedance Analyzer

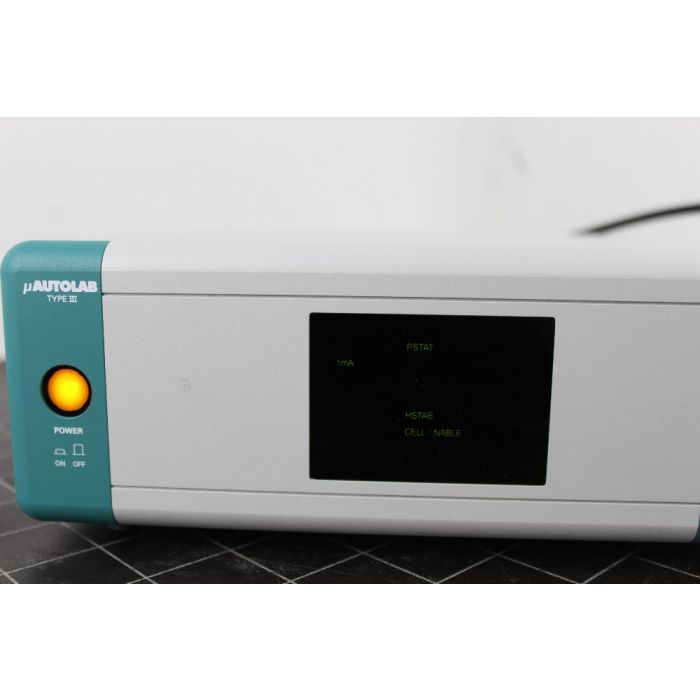

Metrohm µAUTOLAB 3 - Electrochemical Impedance Analyzer

Unit is on its own without the Cell or software, all available from Metohm Autolab.
The Nova software controls all Autolab products, so you may already have it.

The µAutolab 3 is an ideal choice for those who are looking for a low cost and compact but high performance electrochemical impedance analyzer.

When integrated with the Metrohm NOVA software (NOT INCLUDED), this compact instrument can perform impedance measurements over the frequency range of 10 µHz - 500 kHz.

Key features:

Electrode connections     2, 3
Potential range     +/- 5 V
Compliance voltage     +/- 12 V
Maximum current     +/- 80 mA

Current ranges:        10 mA to 10 nA
Potential accuracy     +/- 0.2 %
Potential resolution     3 µV
Current accuracy     +/- 0.2 %
Current resolution     0.0003 % (of current range)
Input impedance     > 100 GOhm
Potentiostat bandwidth     500 kHz
Computer interface     USB
Control software     NOVA (not included)

Power: 100V to 240V 50/60 Hz, 1.6A
Serial: U3AUT71331
DOM: 2012
