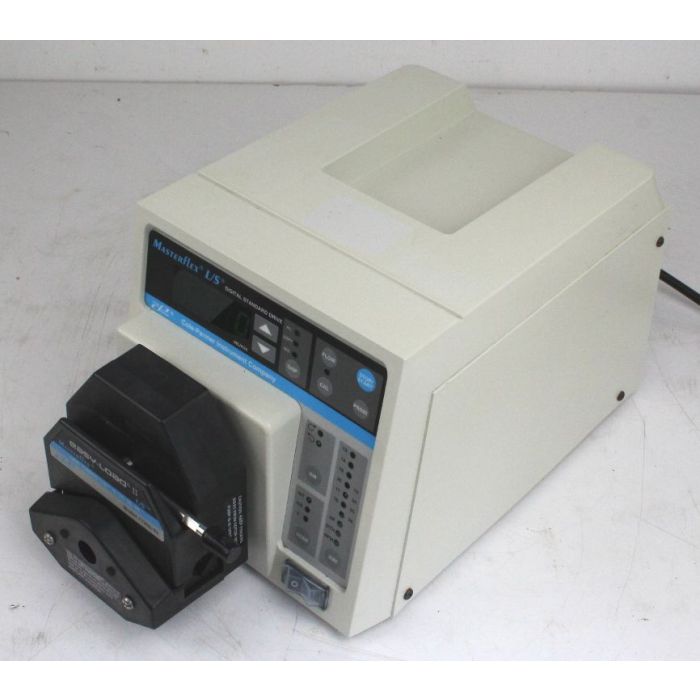

Masterflex L/S 7523-47 standard digital peristaltic pump drive with remote capabilities

Masterflex L/S  7523-47 standard digital peristaltic pump drive with remote capabilities

Fitted with easy-load 11 77200-52 Head

Pump Specification
Max flow rate (mL/min) 340
Min flow rate (mL/min) 0.1
Control type  Digital Variable Speed
Power (Amps) 0.8
Motor (hp) 1/10
Motor (watts) 75
Reversible motor  Yes
rpm  1.6-100
IP rating (Drive) IP53
Digital dispensing  Yes
Dimensions (Drive 29.2cm (D) x 17.8cm (W) x 17.8 cm (H)) Unit with head, 36cm (D)
Speed control  ±0.25% (1 rpm at 600 rpm; 0.1 rpm at 100 rpm)

Head specification

    Automatic retention holds tubing securely in place with no manual adjustment—just load the tubing and start the pump
    Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation.
    Improved occlusion bed geometry lengthens tubing life.

    Each pump head for precision pump tubing accepts tubing sizes L/S® 13, L/S® 14, L/S® 16, L/S® 25, L/S® 17, and L/S® 18. Achieve flow rates of 0.06 to 2300 mL/min (1 to 600 rpm).


mL/rev  Depends on tubing selected.
Accepted tubing  L/S® 13, L/S 14, L/S 16, L/S 25, L/S 17, L/S 18
Rotor material  Cold-rolled steel

PDF Manual
Serial: H01000779
