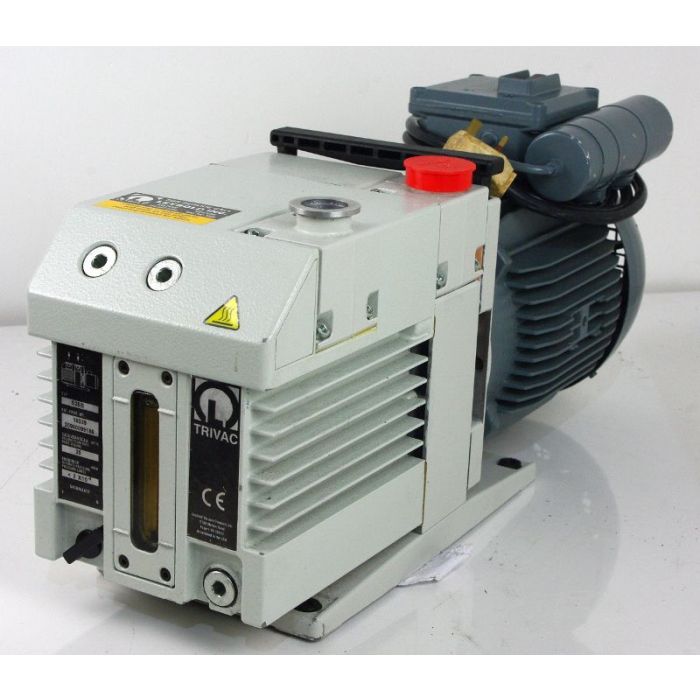

Leybold TRIVAC® B Rotary Vane Vacuum Pump S25B

Leybold TRIVAC® B Rotary Vane Vacuum Pump S25B

Description
TRIVAC-B pumps are oil-sealed rotary vane pumps. The TRIVAC S16 B and S 25 B are single-stage pumps,the number in the type designation (16 or 25) indicates
the pumping speed in m³· h-1

TRIVAC-B pumps can pump gases and vapours and evacuate vessels or vacuum systems in the fine vacuum
range. Those of standard design are not suitable for pumping greater than atmospheric concentrations of
oxygen, hazardous gases, or extremely aggressive or corrosive media.
The drive motor of the TRIVAC-B is directly flanged to the pump at the coupling housing. The pump and motor
shafts are directly connected by a flexible coupling. The bearing points of the pump module are force lubricated
sliding bearings. All controls as well as the oil-level glass and the nameplate are arranged on the front. All connec-
tions are to be found at the sides of the pump. The oil-level glass is provided with prisms for better observation
of the oil level.
The pump module consists of assembly parts which are pin-fitted so as to allow easy disassembly and reassem-
bly. The pump module can be easily removed without special tools.

Pressure 2x10^2 MBAR

Serial# 10339 20900099186

PDF Manual

Dims 20cm (D) x 59cm (W) x 42cm (H)
