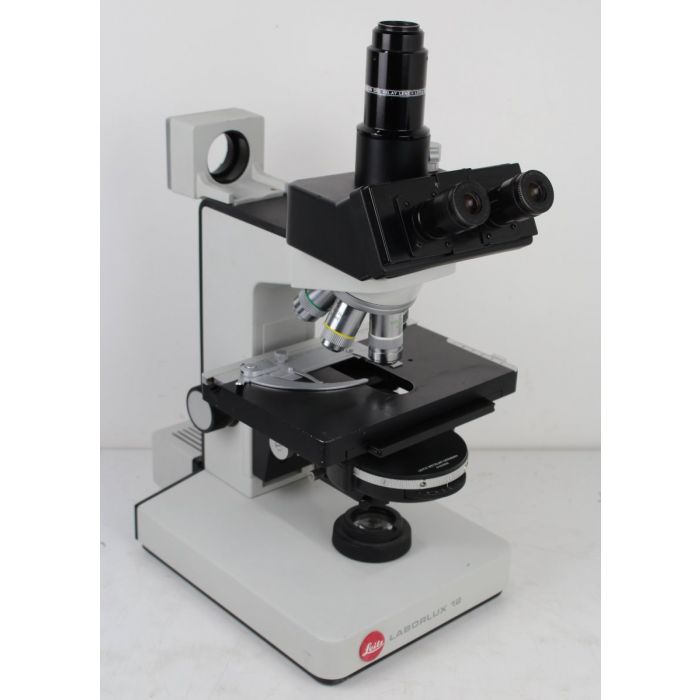

Leitz Laborlux 12 Phase Contrast Trinocular Microscope
Type 020-435.025
Leitz FSA Trinocular Phototube Head with MCA Nikon CPX Relay Lens
Leitz Periplan GF 12.5x Eyepieces, paired
Leitz Phase Condenser UKL 513558
Leitz Periplan GF 12.5x Eyepieces, paired
Leitz Phase Condenser UKL 513558
Objectives
EF 10/0.25
EF25/0.5 PHACO 2
EF 40/0.65
NPL FLUOTAR 50/1.00 Oil
NPL FLUOTAR 100/1.32 Oil PHACO 3
EF 10/0.25
EF25/0.5 PHACO 2
EF 40/0.65
NPL FLUOTAR 50/1.00 Oil
NPL FLUOTAR 100/1.32 Oil PHACO 3
• Quintuple Nosepiece with built in click-stop, having positive indexing
• Large mechanical stage No 78 (Surface Area 200 x 140mm) Ball Bearing mounted guide track enables the exact adjustment to the finest specimin structures up to the highest magnification. Scales and verniers enablen the position ofm details to be read off in both directions to an accuracy of 0.1mm (Adjustment range 76 x 52mm)
• Built in 6V-20W power supply
• Intensity adjusted using variable rheostat and On/Off Switch
• Large mechanical stage No 78 (Surface Area 200 x 140mm) Ball Bearing mounted guide track enables the exact adjustment to the finest specimin structures up to the highest magnification. Scales and verniers enablen the position ofm details to be read off in both directions to an accuracy of 0.1mm (Adjustment range 76 x 52mm)
• Built in 6V-20W power supply
• Intensity adjusted using variable rheostat and On/Off Switch
Trinocular Microscope comes with a camera tube fitting for a a C-mount digital camera. (which we can supply as an optional extra)
Serial# 512645
| SKU | P005 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
