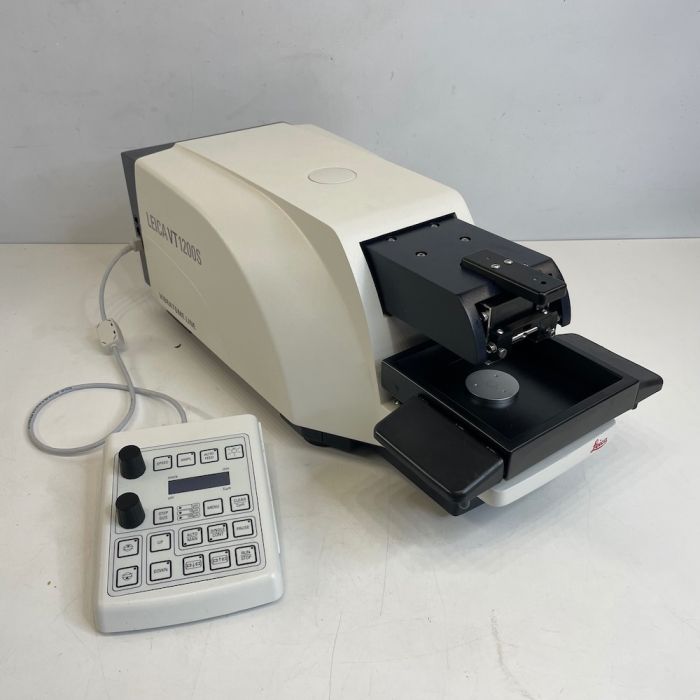

Leica VT1200 - Semi-Automatic Vibrating Blade Microtome

The semi-automatic Leica VT1200 vibrating blade microtome is designed for sectioning fresh specimens in neuropathology (fresh brain slicing), neurophysiology (patch-clamping), and electrophysiology.The instrument is recommended for users who prefer to control sectioning parameters such as section thickness and cutting stroke manually for each individual section. To achieve sections that retain viable cells on the section surface, the vertical deflection of the blade can be measured with the Leica Vibrocheck measurement device and minimized with the innovative blade holder.

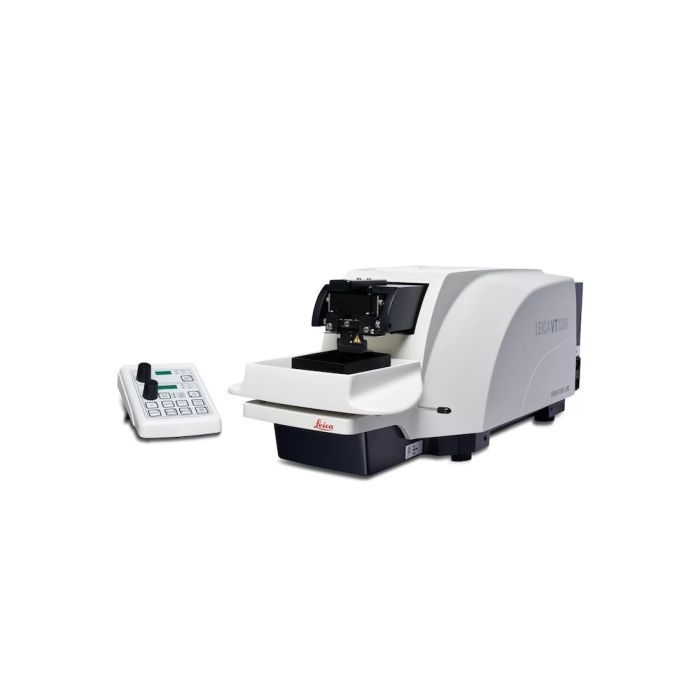

Supplied complete with Julabo FL300 chiller and fluid lines. Stock has only just come so image is not actual, more info to be posted soon. Please ask details

Specification

• Sectioning frequency: 85 Hz (± 10 %)
• Amplitude: Adjustable from 0 - 3 mm, in 0.05 mm increments
• Sectioning speed: Adjustable from 0.01 - 1.5 mm/s (± 10 %)
• Return speed: 2.5 mm/s (± 10 %)
• Total Vertical Specimen Stroke: 20mm
• Cutting range: 45mm
• Weight 56kg
• Dimensions: 25 x 60 x 23cm (w x d x h)

Location RSS
