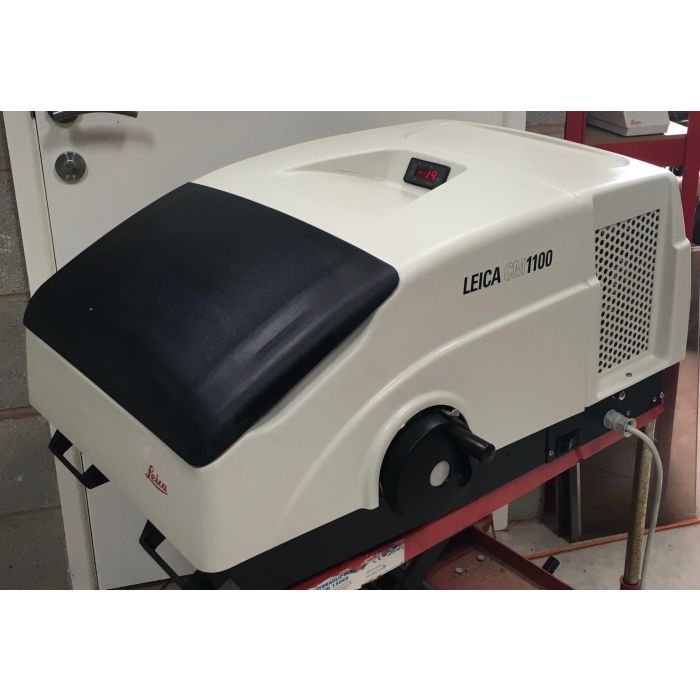

Leica CM1100 Portable Cryostat

With the need for mobile diagnostics ever increasing, the Leica CM1100 is the ideal cryostat for safe and fast on-the-spot evaluation – at the same time, it is also an excellent back-up instrument.

Portable bench-top cryostat

Compact unit, providing maximum ease of use at a total weight of 50 kg

Spacious, easy-to-clean cryochamber made out of stainless steel

CE disposable blade holder with lateral adjustment and glass anti-roll plate

• Quick-freeze shelf
• Two section waste trays
• Microtome with specimen cylinder slot cover –

ideal for spray disinfection
• Automatic and manual hot gas defrosting

Section thickness adjustment: 0 to 20 µm
Maximum specimen size: 25 mm ø
Total horizontal specimen advance:10mm
Vertical specimen stroke: 46 mm

Refrigerating capacity

Temperature setting range: 0 °C to -30 °C ± 10%
Cooling down time to -20 °C: 1,5 h

Chamber defrosting: automatic hot gas defrosting; automatic defrost time freely programmable; manual defrosting on demand; duration: 15 min

Cryocabinet

Dimensions (W x H x D): 570 x 380 x 777 mm
Weight (incl. Microtome):50 kg
