LeCroy WaveRunner 104MXi Digital Oscilloscope

Wanted
SKU
R030

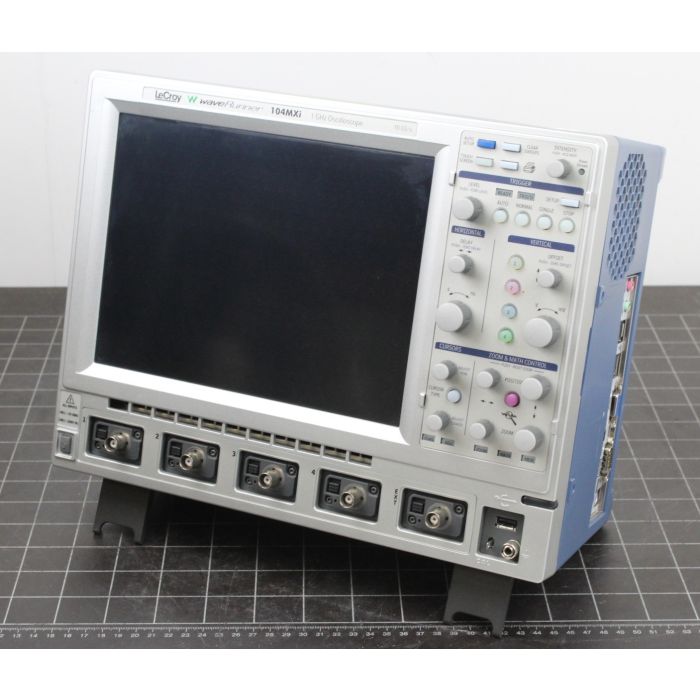

LeCroy WaveRunner 104MXi Digital Oscilloscope

The LeCroy WaveRunner Xi with its advanced triggers, fast viewing modes, measurement parameters, and serial decodes makes validation and debug simple and easy. Advanced debug, multi-domain analysis, and waveshape analysis are possible with tools unique to WaveRunner Xi, Building on the features and capabilities of the WaveRunner Xi the WaveRunner 104MXi provides a higher level of analysis, measurement and customization tools, making it the most powerful and capable oscilloscope in its class.

The collection of tools, features an functions packed into this small 6" deep instrument with large 10.4" touch screen make the WaveRunner 104MXi a truly unique oscilloscope. With a maximum sampling rate of 10 GS/s (5 GS/s per channel) you can be confident in all your measurements knowing that even the fastest signals in your device are being captured. High sample rate is important for fast signals and edges but without long memory this rate cannot be maintained for long captures. The 25 Mpts (12.5 Mpts/Ch) fast memory guarantees maximum sample rate for 2.5 ms.

Beyond the impressive specifications, the WaveRunner 104MXi provides a set of tools like no other oscilloscope. Use WaveScan to search through a single capture for a rare event, or scan through live data acquisitions. The LabNotebook report generator lets you quickly share findings with others and even allows you to make hand written notes directly on top of the signals. With the advanced math and measure tools you can look at every aspect of your waveforms and understand the distribution of measurements with histograms of up to 2 billion events, trends of up to 1 million measurements and a track function that shows variations in signals over time. Adding to the flexibility of th WaveRunner MXi is the ability to create your very own customer or proprietary measurements, math functions, filters or scripts and run them directly in the oscilloscope having results displayed in real time.

1 GHz Bandwidth
5 GS/s (10 GS/s interleaved)
12.5 Mpts/Ch standard memory
WaveScan™ Advanced Search Feature
LabNotebook™ Report Generation Tool
Advanced Math and Measurement Capabilities
Customized Math and Measurements
Jitter and Timing Analysis
Powerful SMART Triggers™
HJDTV Trigger
Mixed Signal Oscilloscope Option with up to 36 Channels
Big 10.4" LCD Display
Small 6" footprint
Mixed Signal Option
I2C, SPI, UART and RS-232 Trigger and Decode
CAN, LIN and FlexRay Trigger and Decode

Pdf manual

Serial# LCRY0610M15232

Complete with PP008 & PP007 Probes, and disc with X-Stream software and manuals

More Information
SKU R030
Availability Out of Stock
Condition Used
