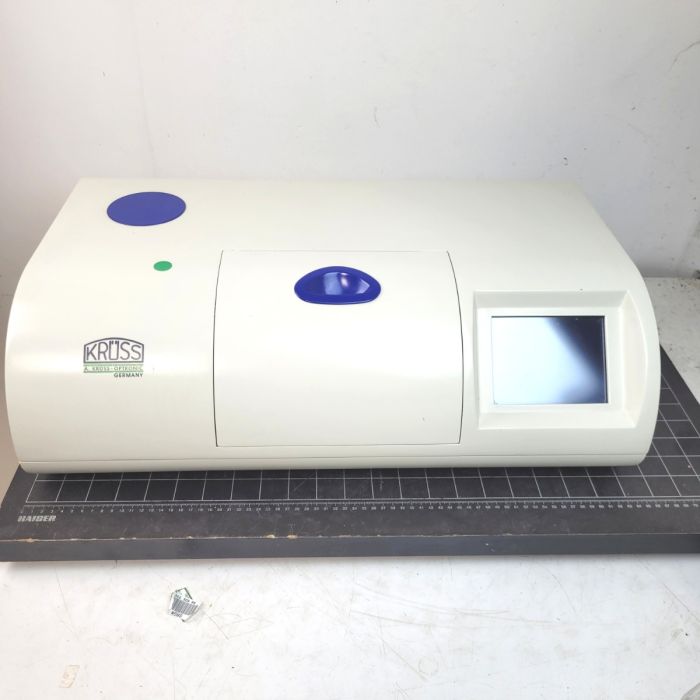

Kruss Polarimeter with optional temperature control

Kruss Polarimeter with optional temperature control
Compact polarimeter with proven features

Temperature heater chiller not included
Tube Options availble from Kruess .com/en

The polarimeter models P8000-T are the right choice for all applications where sample temperature control for high-precision measurements is not absolutely necessary. The devices are suitable for nearly all samples as the parts that come in contact with the sample are chemical resistant. The P8000 and P8100 are recommended for all basic applications. Instead of a temperature control, the temperature can be compensated according to ICUMSA. That allows you to take measurements at any temperature; the results will then be converted to the desired temperature. In addition, the international sugar scale has been predefined on our devices, and the initial weight is taken into account for the conversion into the specific rotation.

    Suitable measurement tubes for any type of sample
    Temperature measurement directly inside the sample
    Reliable temperature compensation
    Highest accuracy over the entire measurement range
    Very short measurement time of approx. 1 s
    Measurement up to an optical density of 3.0 OD
    Intuitive operation via touch-screen display
    Predefined scales (opt. rotation, spec. rotation, int. sugar scale, concentration)
    Any number of freely definable scales with conversions based on tables or formulas
    Chemical-resistant materials
    Compliance with GMP/GLP, 21 CFR Part 11, FDA, ISO, HACCP, OIML, ASTM, ICUMSA, NIST

MEASUREMENT DATA
SCALES    Optical rotation [°]
    Int. sugar scale [°Z]
    Concentration [g/100 ml]
    Spec. rotation
    User-defined
MEASUREMENT RANGE    ±90°
    ±259 °Z
MEASUREMENT ACCURACY    ±0.003°    ±0.002°
    ±0.01 °Z    ±0.01 °Z
RESOLUTION    0.001°
    0.01 °Z
MEASUREMENT PERIOD ±90°    Approx. 1 s
LIGHT SOURCE    1 LED with filter
WAVELENGTH    589 nm
TEMPERATURE DATA
TEMPERATURE CONTROL    With measurement tube PRG-100-EPT with 3 integrated Peltier elements
TEMPERATURE CONTROL RANGE    15–40 °C
TEMPERATURE CONTROL ACCURACY    ±0.2 °C
TEMPERATURE MEASUREMENT    With measurement tube PRG-100-EPT
TEMPERATURE MEASUREMENT RANGE    0–99.9 °C
TEMPERATURE MEASUREMENT RESOLUTION    0.1 °C
TEMPERATURE MEASUREMENT ACCURACY    ±0.1 °C

Serial No: 4180100014
Power 240V
Hard Copy Manual
