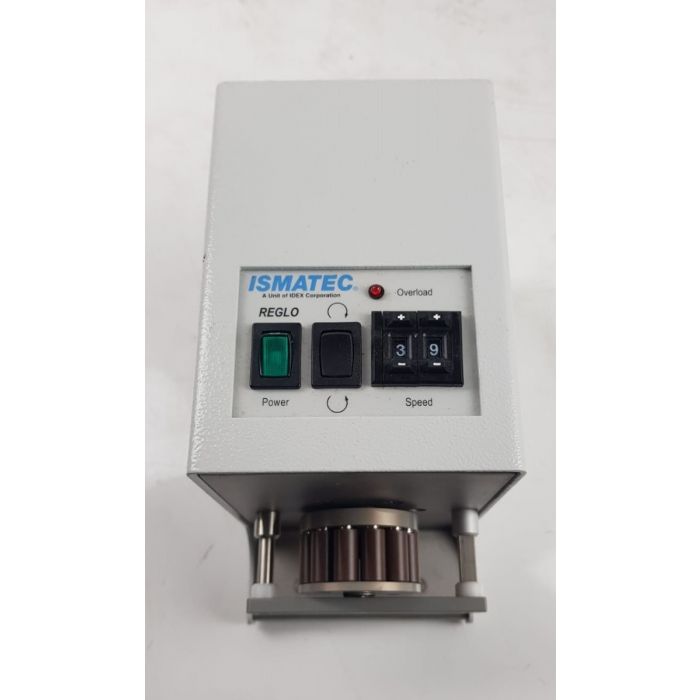

Ismatec ISM795 Reglo Analog Variable-Speed Peristaltic Pump

Ismatec ISM795 Reglo Analog Variable-Speed Peristaltic Pump

Ismatec IS3510 Click-N-Go Cassette/Cartridges available from Cole Parmer

Control Type Variable-Speed Analog
Min RPM 3.2
Max RPM 160
Number of Channels 2
Max Flow Rate (mL/min) 38
Min Flow Rate (mL/min) 0.003
Max Flow Rate Per Channel (mL/min) 34
Min Flow Rate Per Channel (mL/min) 0.003
Pump Head 78016-98 x2 (Click'n'Go Cassette)
Tubing 3-stop assemblies
Tubing sizes accepted 0.13 to 3.17
Washdown Capable No
Max Pressure (bar) 1.5
Number of Rollers 12
Duty Cycle Continuous
Max Pressure (PSI) 22
Power (Hz) 50/60
Width (cm) 10 Height (cm) 14.3 Length (cm) 17.8
Remote Inputs 0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA

Description
Reglo analog, MS-2/12, 2-Ch, 12-Rlr, Var-Speed Pump; 0.003 to 38 mL/min,

Serial# 03641-00037
