Inphotonics RPB Raman Laboratory Fibre Optic Probe

Inphotonics RPB Raman Laboratory Fibre Optic Probe
Manuals
November 2014 model

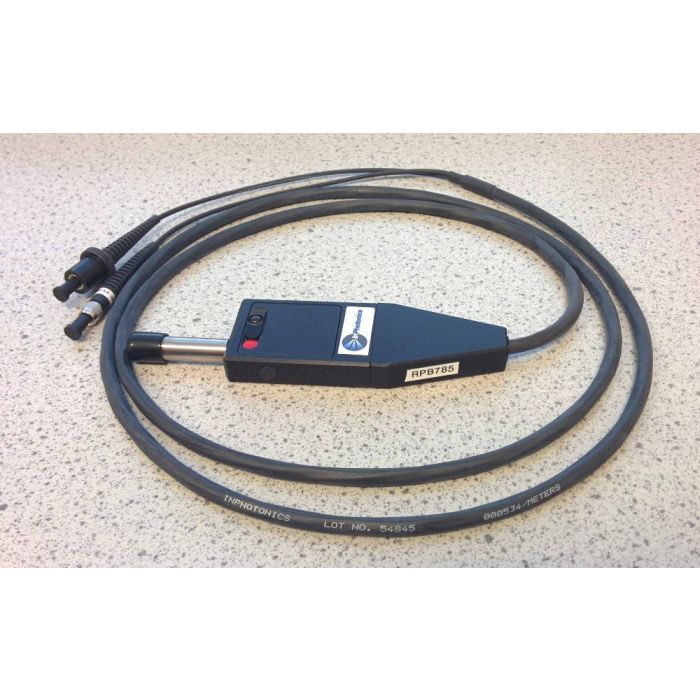

The RPB Raman fiber optic probe is a breakthrough for routine laboratory Raman spectroscopy.
A modified design based upon the patented RamanProbeTM optical layout has resulted in drastic cost-reduction with limited performance tradeoff.
The RPB is the clear cost/performance winner among laboratory Raman sampling probes.
The RPB is available for three excitation wavelengths: 785, 633, and 532 nm and can be coupled to a variety of spectrograph designs.
Optical filtering of 106 offers efficient attenuation of the Rayleigh line for background-free spectra.
The probe is lightweight and compact, and has a manual safety shutter (with built in calibration standard)† to shield the user from the laser light.
As with our standard RamanProbeTM, the RPB can be used with the compact sample holder for routine measurement of liquids and solids.
The 105 µm excitation fiber and 200 µm collection fibers can be coupled to most laser/spectrograph combinations.



Features and Specifications:

Sampling Head Anodized aluminum probe, 4.2" x 1.5" x 0.5" (107 x 38 x 12.7 mm ), with 1.5" long (38 mm) stainless-steel probe tip.
Spectral Range 250 - 3900 cm-1 (Stokes)*
Excitation Wavelengths 514, 532, 632, 670, "785" (782-788), 830 nm
Working Distance 7.5 mm (std.), 5 or 10 mm optional
Fiber Configuration
Permanently-aligned combination of two single fibers (105 µm excitation fiber, 200 µm collection fiber standard) with filtering and steering micro-optics, N.A. 0.22, in rugged polyurethane jacket.

Filter Efficiency Patented design for complete filtering of the laser line and quartz spectral contributions from both input and output fibers (O.D. > 6 at laser wavelength)
Physical Resistance
Durable probe can be used up to 80ºC

Cable Length           1.5 m
Safety Features        Manual safety shutter† to block laser output; Class I sample holders available
Coupling System Available with FC (std.) or SMA 905 connectors
Retail Price When NEW £2000.00

We have other Instruments for Raman experiments. Stock Ref:

J052

J053
