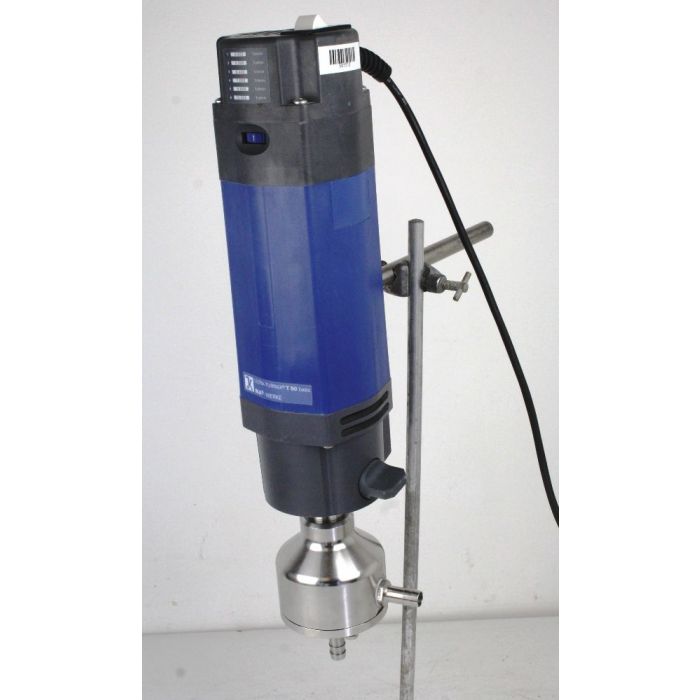

IKA T50 Basic Homogenizer

Please call...
SKU
L177
IKA T50 Basic Homogenizer
High-performance dispersing instrument for volumes from  0.25 - 30 l (H2O).
- Three types of shaft bearings
- Several rotor-stator configurations
- Agitator shaft R 50 allows the use of the T 50 basic as a high-speed stirrer (not included in delivery)
- Infinitely variable speed control, for continuous operation
- Reproducible operations due to constant speed even with viscosity changes
- Large selection of dispersing elements
- Plug-in connectors facilitate exchange of dispersing elements
- Electronic safety circuit and smooth start
Motor rating input  [W] 1100
Motor rating output  [W] 700
Volume range min. (H2O)  [l] 0.25
Volume range max. (H2O)  [l] 30
Viscosity max.  [mPas] 5000
Speed range  [rpm] 500 - 10000
Speed deviation  [%] 1
Speed control stepless
Speed display scale
Noise without element   [dB(A)] 72
Extension arm diameter  [mm] 16
Extension arm length  [mm] 220
Process type batch
Dimensions (W x H x D)  [mm] 125 x 367 x 120
Weight  [kg] 6
Permissible ambient temperature  [°C] 5 - 40
Permissible relative moisture  [%] 80
Protection class according to DIN EN 60529 IP 20
Includes DK 50.11 Flow Chamber
For circulation or flow-through processings in the laboratory or pilot plant stations.
- Large flow rate of 24 l/min with open outlet (the mounting of a valve reduces the delivery capacity)
- For air-free, sterile, and inline suspension, emulsyfying and desagglomeration
- For vacuum or pressurized operation to 6 bar
- If the DK 50.11 is used, air induction is also prevented in batch operation
- A pump can be integrated between intake nozzle and vessel. As a result, viscous fluids can be processed
Serial# 01.397402
PDF Manual
More Information
SKU L177
Condition Used
