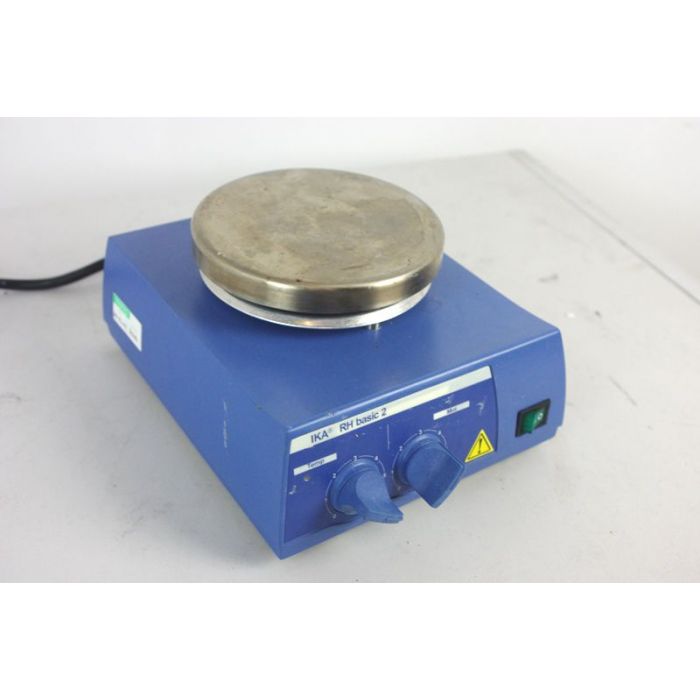

IKA RH basic 2 Magnetic Hotplate Stirrer

Please call...
SKU
F245

IKA RH basic 2 Magnetic Hotplate Stirrer



These economical stirring hot plates feature a soft start motor to prevent samples from splashing and spraying. Stirrers produce a strong magnetic field to create speeds that are adjustable from 50 to 2000 rpm. The composite stainless steel plate ensures rapid heat up to the desired temperature up to 608°F (320°C). Produce highly accurate temperature control by connecting stirring hot plates to an external sensor according to DIN 12878. An indicator warns when the plate is hot to prevent burns.



Specification:

  • Number of stirring positions                1
  • Stirring quantity max. per stirring position     (H2O)    10 l
  • Stirring quantity max.                 (H2O)    10 l
  • Motor rating input    15 W
  • Motor rating output    2 W
  • Speed range    100 - 2000 rpm
  • Heat output    400 W
  • Heating temperature range    room temp. - 320 °C
  • Heat control    scale 1 - 6
  • Speed control    scale 0 - 6
  • Fixed safety circuit     400 °C
  • Set-up plate material    stainless steel 1.4301
  • Set-up plate dimensions    Ø 125 mm
  • Dimensions (W x H x D)    168 x 105 x 220 mm
  • Weight    2.4 kg
  • Permissible ambient temperature    5 - 40 °C
  • Permissible relative humidity    80 %
  • Protection class according to DIN EN 60529    IP 21
  • Voltage    220 - 240 / 115 / 100 V
  • Frequency    50/60 Hz
  • Power input    415 W
